B.E.G. 93369

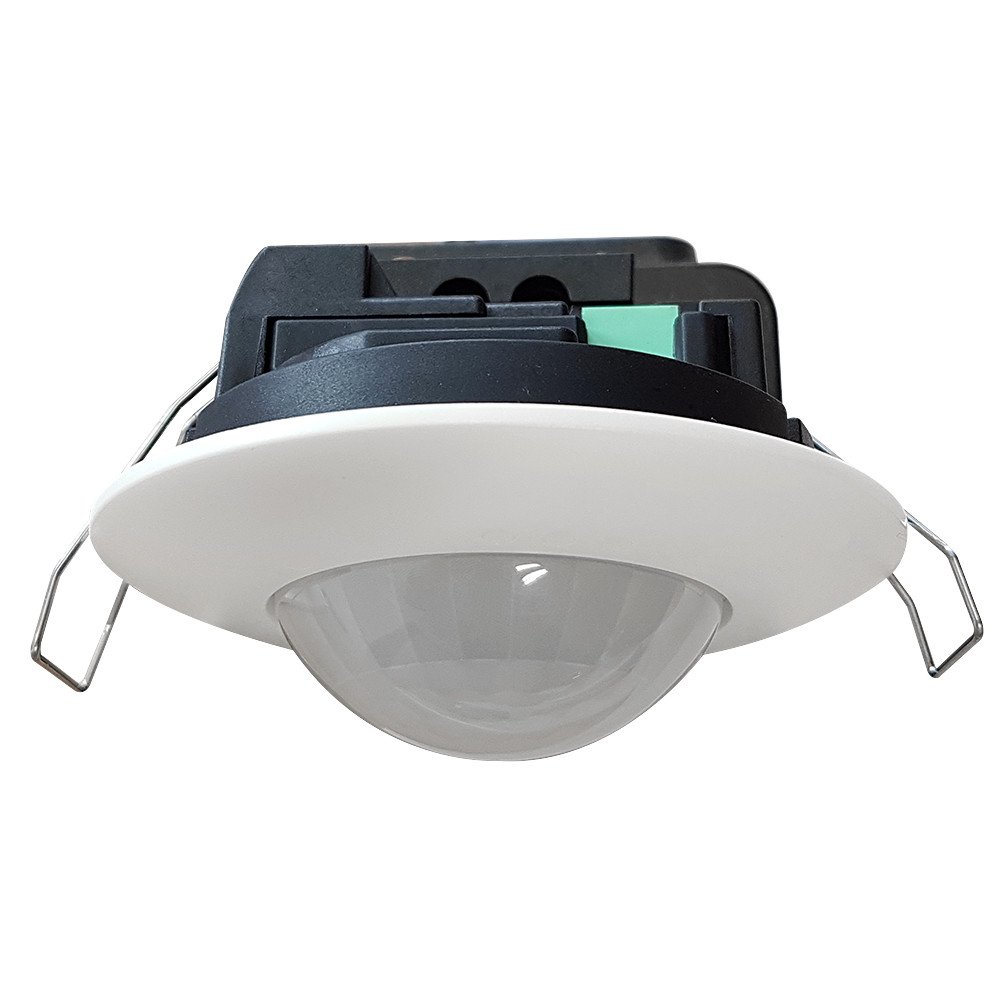

Image is for illustrative purposes only

B.E.G. 93369 (PD2N-DALI-SYS-FC) Occupancy Detector 360° FC White IP20 DALI-SYS 10m

Part: 93369
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • DALI multisensor
  • Powered via DALI bus
  • Seemless integration in B.E.G. LUXOMAT(R)net DALI-SYS
  • Bright LED indication for commissioning
  • Detection area can be extended thanks to master-slave-mode
  • Mixed light measurement with internal and external light sensor
  • Semi-automatic, full-automatic or twilight switch mode
  • Integrated daylight harvesting circuit (or switch output)
  • Guided Light, Soft-Start PLUS, Orientation light PLUS
  • Works out-of-the box for easy installation check

Mounting method :Other
Colour :White
Model :Presence detector
Height :55mm
Surface protection :Other
Creep-under protection :No
Number of channels :1
Diameter :83mm
Suitable for wall mounting :No
Staircase monitoring :No
Material qualifier :Other
Max. reach frontally :3M
Max. reach sideways :5M
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Auxiliary input :No
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Voltage supply over bus :Yes
Response value luminosity adjustable :No
Switch-off delay self-learning :No
Optimum mounting height :2.5M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
