B.E.G. 93355
Image is for illustrative purposes only

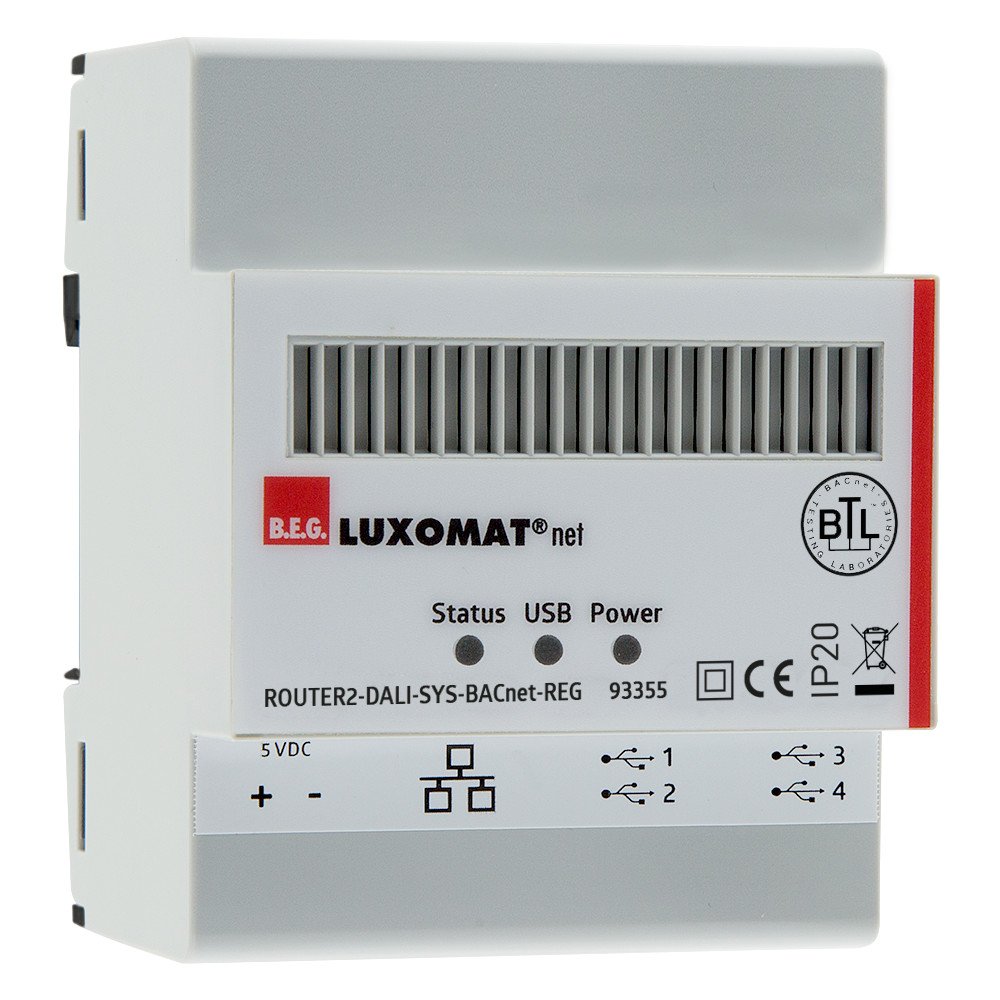

B.E.G. 93355 (ROUTER2-DALI-SYS-BACnet-REG white) DALI Router BACnet DIN-rail (TH35), White IP20

Part: 93355
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Router with integrated web server and application controller for DIN rail mounting according to DIN EN 60715.
  • 4 USB ports for controlling up to 4 separately available B.E.G. application controllers with integrated DALI power supply unit
  • 1 LAN port for networking up to 100 devices, up to 400 interconnected DALI lines possible
  • Integrated BACnet/IP interface
  • BACnet device type B-ASC (Application Specific Controller)
  • BACnet device type B-GW (Gateway)
  • Dynamically generated BACnet objects
  • Multi-state BACnet outputs for scene and automation override
  • Analogue BACnet outputs for dimming value override
  • Analogue BACnet inputs for dimming value status queries

Mounting method :DRA (DIN-rail adapter)
Colour :White
Model :Ethernet
Surface protection :Other
Material qualifier :Other
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :No
Material :Plastic
Width in number of modular spacings :4
Other bus systems :Other
Bus system LON :No
With label area :No
Degree of protection (IP rating) :IP20
With LED indication :Yes
Transparent :No
Surface finish :Matt
Bus system KNX radio :No
Radio frequent bidirectional :No
