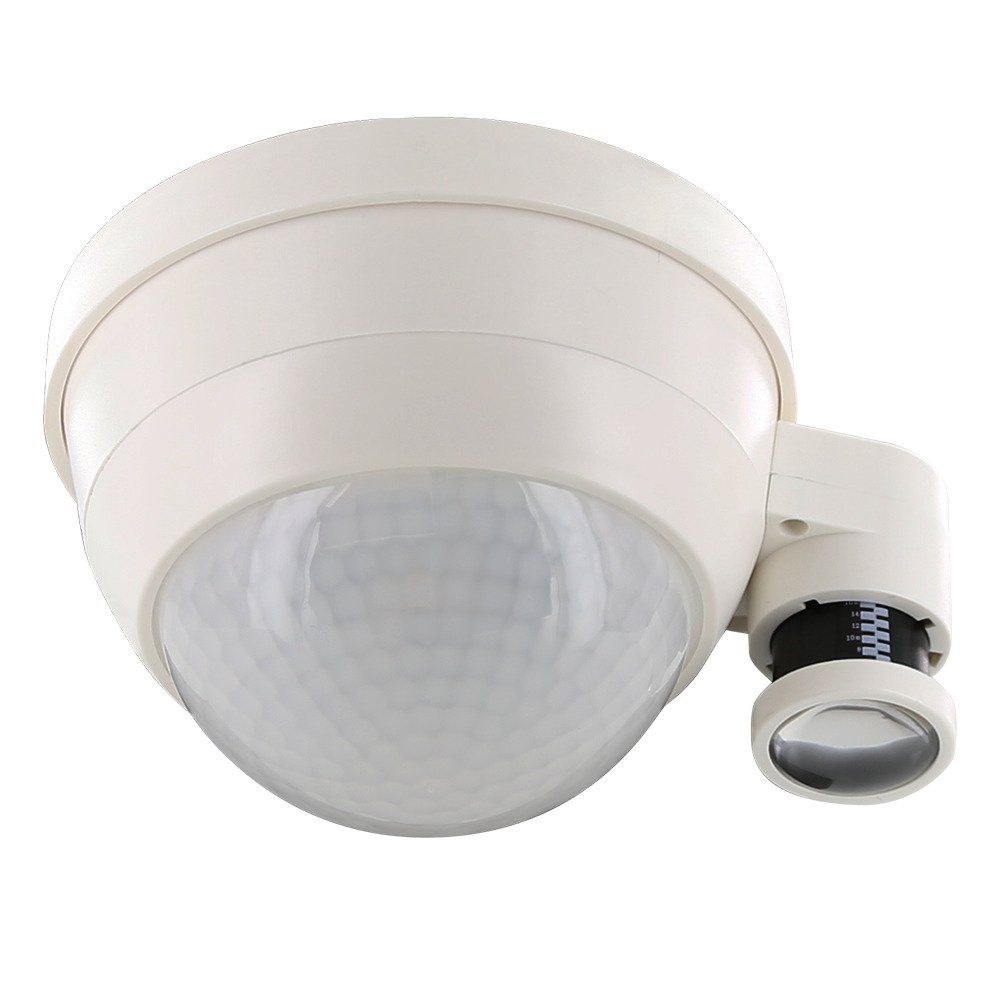

B.E.G. 93345 (PD4-DALI-SYS-GH-SM) Occupancy Detector GH 360° SM White IP54 DALI-SYS 30m

Part: 93345
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • DALI multisensor for surface mounting in large mounting heights
  • Powered via DALI bus
  • External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application.
  • Seemless integration in B.E.G. LUXOMAT(R)net DALI-SYS
  • Bright LED indication for commissioning
  • Detection area can be extended thanks to master-slave-mode
  • Integrated daylight harvesting circuit (or switch output)
  • Guided Light, Soft-Start PLUS, Orientation light PLUS
  • Works out-of-the box for easy installation check
  • Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-SYS

Mounting method :Surface mounted
Colour :White
Model :Presence detector
Height :76mm
Surface protection :Untreated
Diameter :101mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach sideways :15M
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Diameter reach on floor :30M
Teach-function for response value luminosity :No
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Voltage supply over bus :Yes
Response value luminosity adjustable :No
Optimum mounting height :14M
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
