B.E.G. 93336

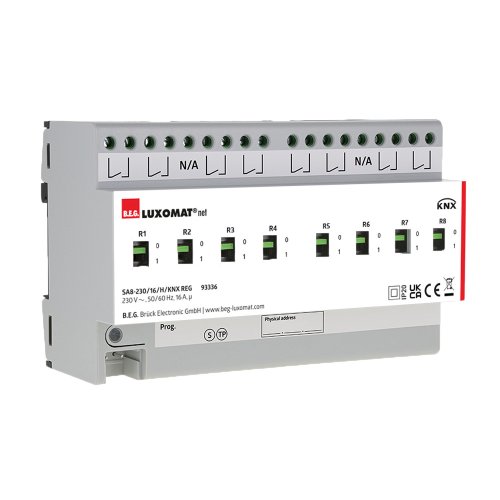

Image is for illustrative purposes only

B.E.G. 93336 (SA8 - 230 / 16 / H / KNX REG grey) Switching Actuator DIN-rail (TH35), Grey IP20 KNX 8 Channel

Part: 93336
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Switching actuator for switching loads
  • DIN-rail mount device, width 72 mm (4TE, SA4 - 230 / 16 /) or 144 mm (8 TE, SA8 - 230 / 16 /) for mounting on a DIN-rail (TH35 EN 60715) for installation in a switch cabinet
  • The device has four (SA4 - 230 / 16 /) or eight (SA8 - 230 / 16 /) independant potential-free NO contacts
  • The switching contacts are optimised for capacitive loads
  • Manual switches for switching without bus tension
  • The switching actuator is powered by the KNX bus, no additional power supply required
  • Connection of the outputs is realised by means of screw terminals

Mounting method :DRA (DIN-rail adapter)
Rated current :16A
Output power :3680W
Bus system KNX :Yes
Bus system radio frequent :No
Bus system Powernet :No
Max. switching power :3680W
Bus connection included :Yes
Max. number of switching contacts :8
Number of digital inputs :0
Width in number of modular spacings :8
Max. switching current :16A
Other bus systems :None
Bus system LON :No
Suitable for C-load :Yes
Different phases connectable :No
Local operation/hand operation :Yes
Degree of protection (IP rating) :IP20
With LED indication :Yes
Modular expandability :No
Bus system KNX radio :No
Radio frequent bidirectional :No
Bus module detachable :No
