B.E.G. 93323
Image is for illustrative purposes only

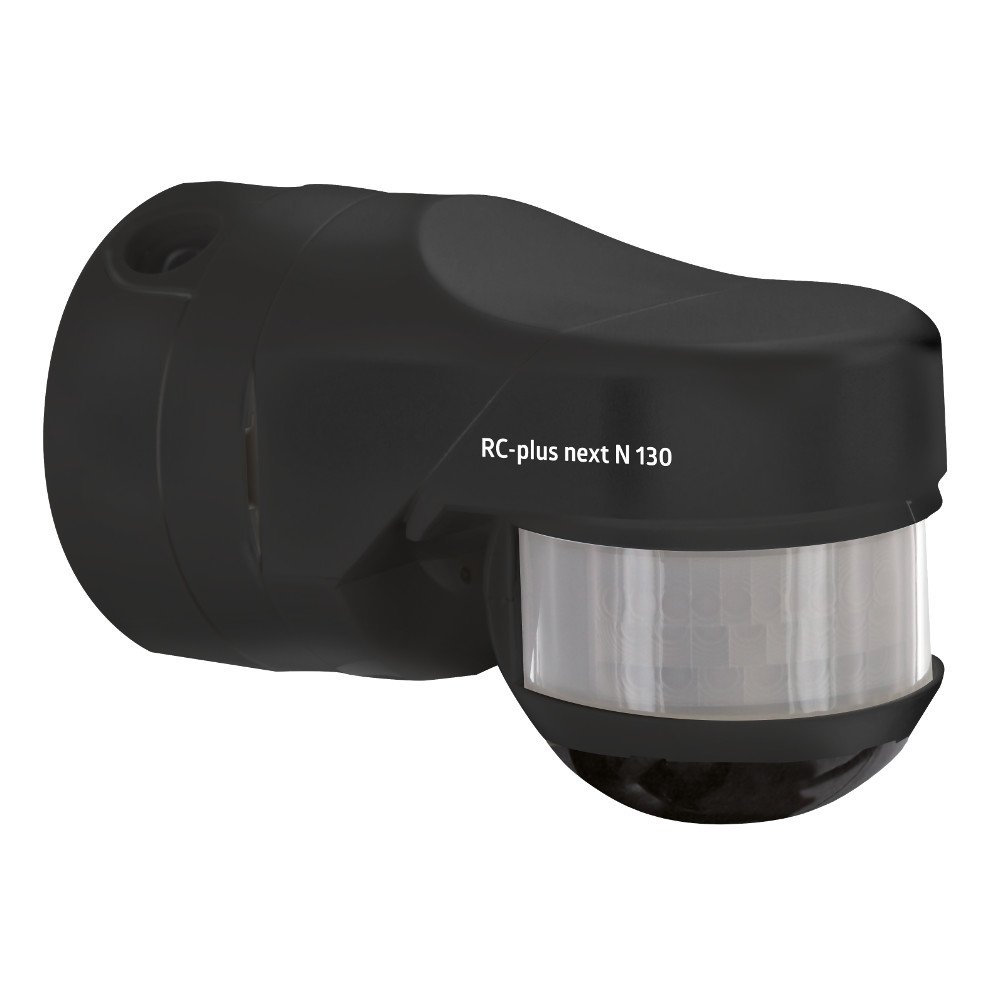

B.E.G. 93323 (RC-plus next N 130 black) Motion Detector 130° Wall/Ceiling, Black IP54 20m 1 Channel

Part: 93323
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Motion detector with 130° detection area and anti-creep zone
  • Mechanical range adjustment
  • Different follow-up time depending on direction of movement
  • Uninterrupted parallel circuit detection of several detectors
  • Manual switching via push-button possible
  • Adjustable ball head
  • Immediate operation using factory settings
  • Additional functions can be set up using the optional remote control.
  • Zero crossing switching
  • Socket compatible to RC-plus (next) and Vario

Mounting method :Surface mounted
Colour :Black
Width :71mm
Model :Movement sensor
Halogen free :Yes
Height :85mm
Depth :121mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Suitable for wall mounting :Yes
Staircase monitoring :No
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach frontally :6M
Max. reach sideways :20M
Max. switching power :3000W
Max. starting current :165A
Material :Plastic
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :36M
Remote operation :Yes
HVAC-control :No
Constant light control :No
Auxiliary input :No
RAL-number (similar) :9005
With signal unit :No
Teach-function for response value luminosity :Yes
Networkable :No
Impact resistance (IK rating) :IK03
With connection cable :No
Degree of protection (IP rating) :IP54
Alarm function :Yes
Transparent :No
Animal zone :Yes
Surface finish :Matt
Min. switch-on time :15 s
Max. duty cycle :16 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :450
With DALI interface :No
IFTTT support available :No
Max. presence range :18m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :300W
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
