B.E.G. 93308
Image is for illustrative purposes only

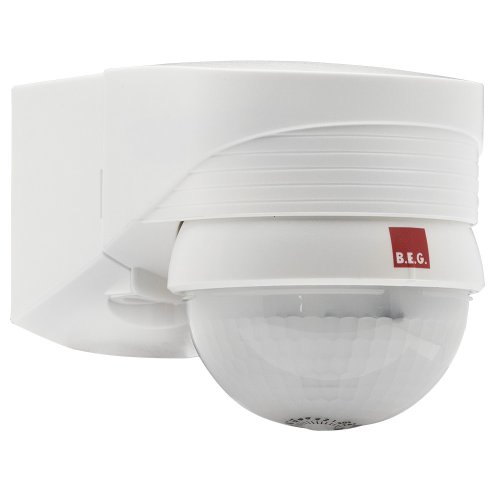

B.E.G. 93308 (LC-plus-DALI-SYS 280 white) Motion Detector 280° Mounting Bracket f. White IP54 DALI-SYS 16m

Part: 93308
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Wide motion detection range DALI multisensor for wall or outside corner mounting
  • Powered via DALI bus
  • Seemless integration in B.E.G. LUXOMAT(R)net DALI-SYS
  • Detection area can be extended thanks to master-slave-mode
  • Semi-automatic, full-automatic or twilight switch mode
  • Integrated daylight harvesting circuit (or switch output)
  • Guided Light, Soft-Start PLUS, Orientation light PLUS
  • DIP- and HEX-switch for quick commissioning with basic functionality
  • Works out-of-the box for easy installation check
  • Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-SYS

Colour :White
Width :68mm
Model :Presence detector
Height :78mm
Depth :110mm
Surface protection :Untreated
Creep-under protection :Yes
Suitable for wall mounting :Yes
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :9M
Max. reach sideways :16M
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Diameter reach on floor :20M
RAL-number (similar) :9010
Teach-function for response value luminosity :No
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :1 s
Max. duty cycle :120 Min
Voltage supply over bus :Yes
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :No
