B.E.G. 93142

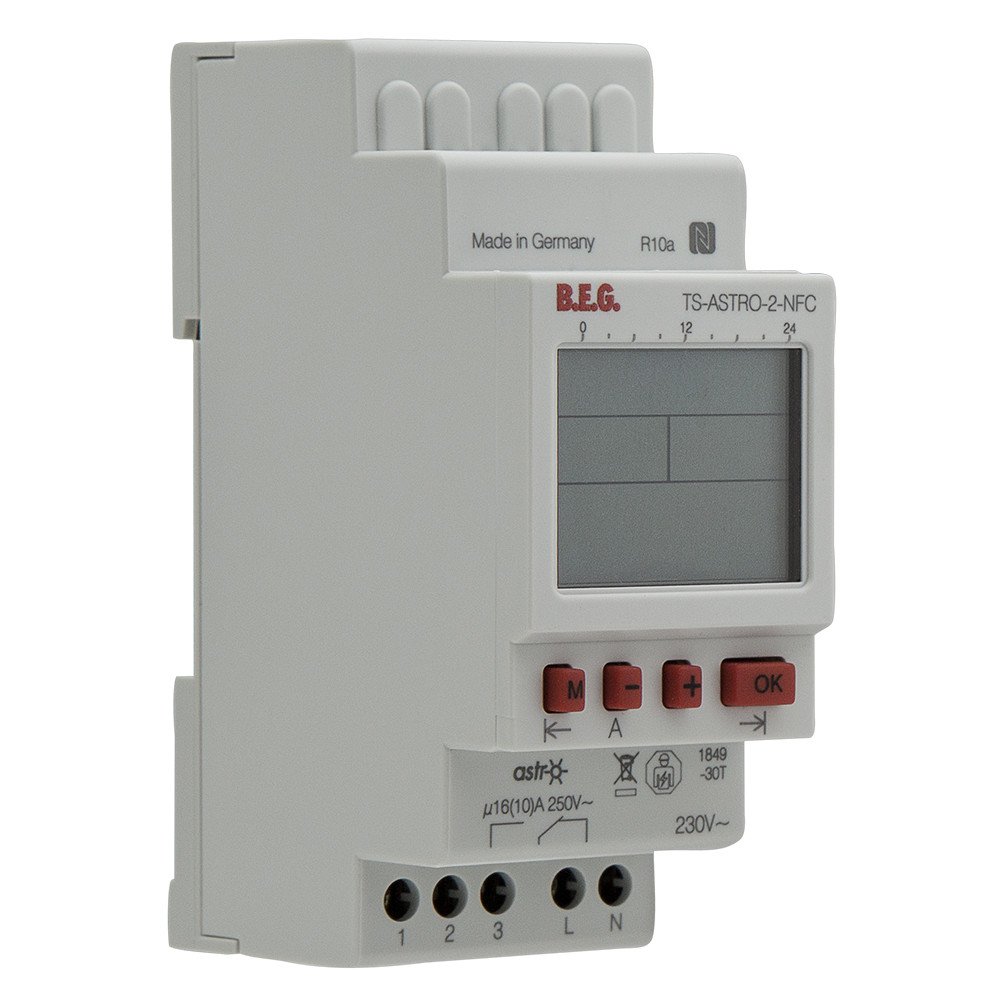

Image is for illustrative purposes only

B.E.G. 93142 (TS-ASTRO-2-NFC) Time Switch ASTRO-NFC DIN-rail (TH35), Grey IP20 1 Channel

Part: 93142
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Digital ASTRO time switch for installation in branches
  • 1 channel
  • 56 memory locations
  • Switching capacity 16 A per channel
  • NFC programming (ISO 15693 standard)
  • Directly programmable via App (Android)
  • Replaceable battery (CR2032)
  • Illuminated display
  • Astro program
  • Daily and weekly program

Mounting method :DIN rail
Width :36mm
Height :58mm
Depth :45mm
Number of memory locations :100
Astro/solar program :Yes
Number of channels :1
Radio-controlled :No
Weekly program :No
Annual program :Yes
GPS (global positioning system) :No
Width in number of modular spacings :2
Holiday program :Yes
Impulse program :Yes
Automatic switching summer-/winter time :Yes
Manual operation :Yes
Switching preselection :Yes
Voltage type of supply voltage :AC
External programming :Yes
Radio-controlled (DCF77) :No
Hour meter :Yes
Autonomy in years :10
Autonomy in hours :87600
Nominal switching current at 250 V AC :16A
Text guidance in display :Yes
Degree of protection (IP rating) :IP20
External pushbutton input :No
Max. switching power LED :200W
