B.E.G. 93068
Image is for illustrative purposes only

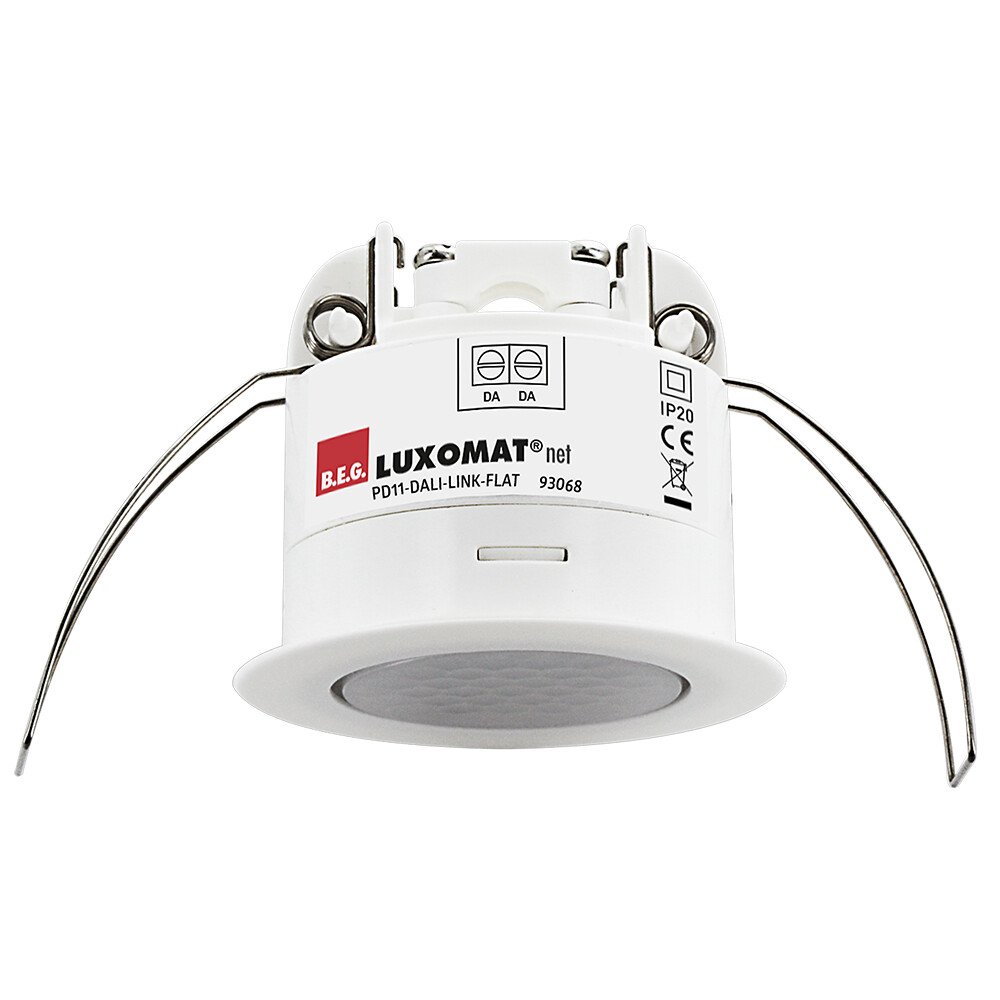

B.E.G. 93068 (PD11-DALI-LINK-FLAT-FC) Occupancy Detector FLAT 360° FC White IP20 DALI-LINK 9m

Part: 93068
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Low profile DALI multisensor (visible height: 0,85 mm)
  • Powered via DALI bus
  • Seemless integration in DALI lighting control system B.E.G. LUXOMAT(R)net DALI-LINK as modular multimaster option
  • Detection area can be extended thanks to master-slave-mode
  • Measuring of mixed light thanks to internal light sensor
  • Semi-automatic, full-automatic or twilight switch mode
  • Integrated daylight harvesting circuit (or switch output)
  • Guided Light, Soft-Start PLUS, Orientation light PLUS
  • Works out-of-the box for easy installation check
  • Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-LINK

Mounting method :Other
Colour :White
Model :Presence detector
Height :48mm
Surface protection :Untreated
Creep-under protection :Yes
Diameter :52mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :6M
Max. reach sideways :4.5M
Length of connection cable :0mm
Other bus systems :Other
Diameter reach on floor :9M
RAL-number (similar) :9010
Teach-function for response value luminosity :No
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Voltage supply over bus :Yes
Response value luminosity adjustable :No
Optimum mounting height :2.5M
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
