B.E.G. 93006

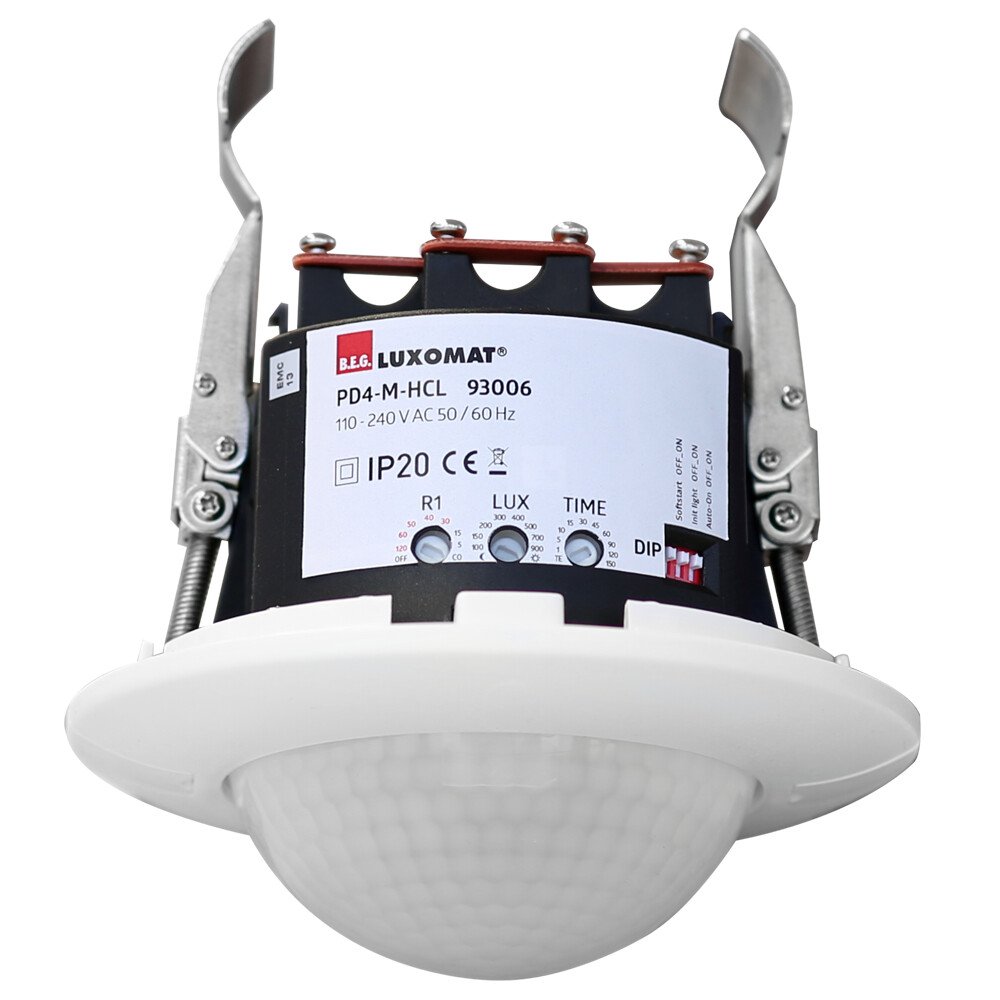

Image is for illustrative purposes only

B.E.G. 93006 (PD4-M-HCL-FC) Occupancy Detector HCL 360° FC White IP20 24m

Part: 93006
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Bidirectional occupancy detector with integrated DALI controller for an energy-efficient and biologically effective light control (Human Centric Lifghting)
  • Very sensitive occupancy detector with the ability to address up to 64 DALI-DT8 Tunable White luminaires approved by B.E.G. and to control them in groups
  • The integrated real time clock regulates automatically the colour temperature and the brightness level in such a way that the human circadian rhythm is supported
  • 3 light zones
  • A for the main light with segmented HCL control via 3 groups and offset control
  • B for desk or accentuated illumination via a separate DALI group
  • C for desk or accentuated illumination via integrated relay
  • Pure Colour: An outdoor colour temperature light sensor, available as an accessory, can be used to measure / transmit the current daylight value.
  • Manual switching or dimming via conventional pushbuttons
  • Powerful switching relay for different operating modes, e.g. Cut-off function for DALI ballasts, HVAC, blackboard illumination.

Mounting method :Other
Colour :White
Model :Presence detector
Height :100mm
Surface protection :Other
Creep-under protection :Yes
Number of channels :4
Diameter :117mm
Suitable for wall mounting :No
Staircase monitoring :No
Material qualifier :Other
Switching power :2300W
Max. reach frontally :8M
Max. reach sideways :12M
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Diameter reach on floor :24M
Auxiliary input :No
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :Yes
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :60 s
Max. duty cycle :150 Min
Voltage supply over bus :No
Response value luminosity adjustable :Yes
Switch-off delay self-learning :No
Optimum mounting height :2.5M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
