B.E.G. 92976
Image is for illustrative purposes only

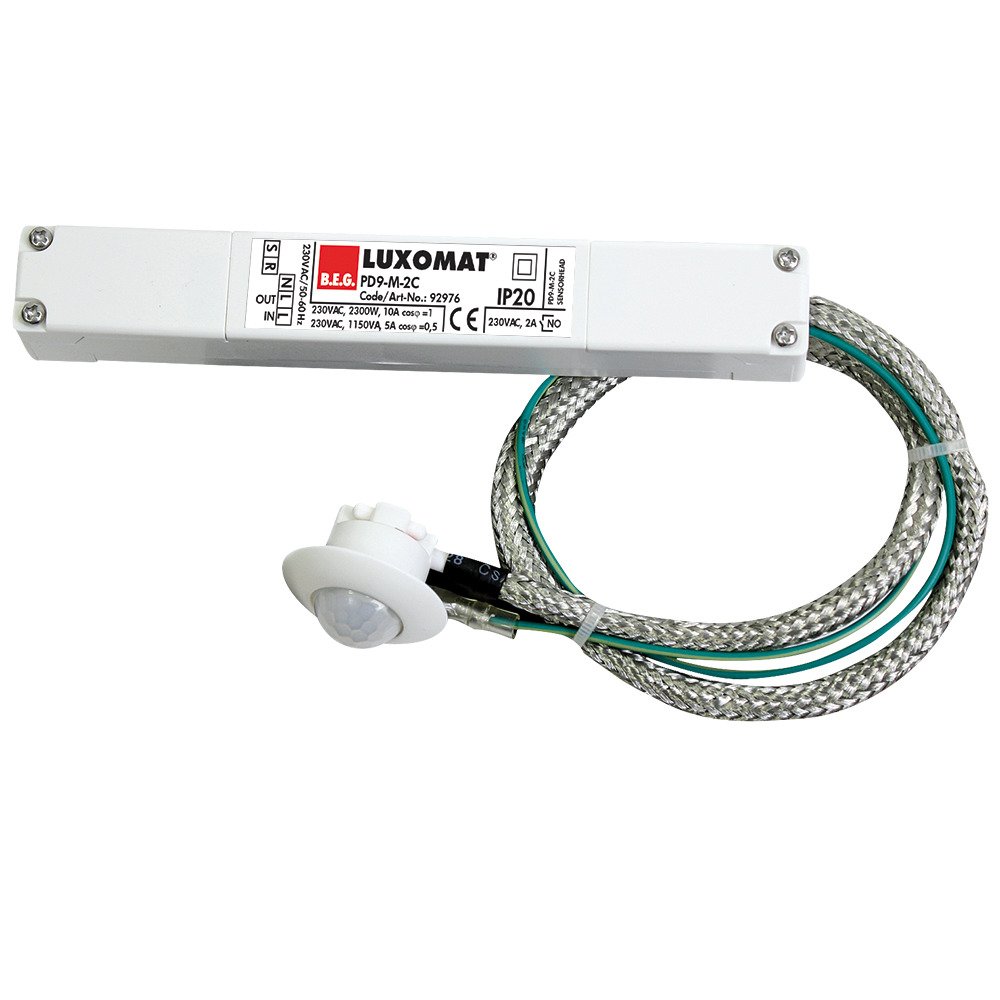

B.E.G. 92976 (PD9-M-2C-FC) Occupancy Detector PD9 360° FC White IP20 10m 2 Channel

Part: 92976
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Mini occupancy detector for light switching with additional potential-free (dry) contact
  • Version as master device
  • Detection area can be extended by using slave devices
  • Easy operation with remote control (required)
  • Manual switching via push-button possible
  • Power supply passes through the hole in the ceiling for the detector (34 mm Ø)
  • Spring clips for quick and easy installation in suspended ceilings and light fittings
  • Includes 45 mm cover ring and blinds
  • Factory settings 10 min and 500 lux (15 min HVAC)

Mounting method :Other
Colour :White
Model :Presence detector
Halogen free :Yes
Height :28mm
Surface protection :Untreated
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :45mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach sideways :5M
Max. switching power :2300W
Max. starting current :165A
Material :Plastic
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :10M
Remote operation :Yes
HVAC-control :Yes
Auxiliary input :Yes
RAL-number (similar) :9010
With signal unit :No
Control current :3mA
Teach-function for response value luminosity :Yes
Networkable :No
Forced switch off :Yes
Impact resistance (IK rating) :IK03
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :Yes
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :300 s
Max. duty cycle :30 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :78
With DALI interface :No
IFTTT support available :No
Max. presence range :12m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :300W
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
