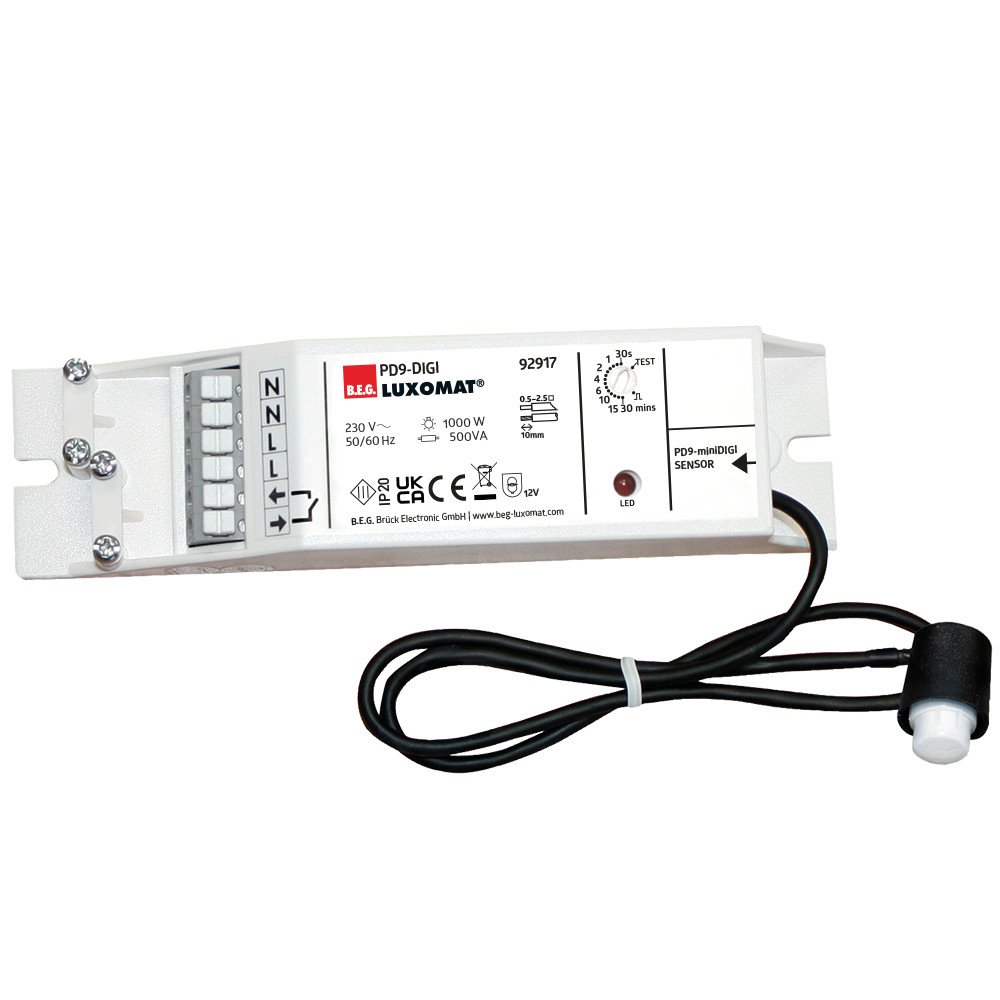

B.E.G. 92917 (PD9-DIGI) Occupancy Detector DIGI 360° Integration - IP20 3m 1 Channel

Part: 92917
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Mini-motion detector designed for installation in luminaires
  • One channel for light switching
  • Switching solely depends on motion
  • Manual setting of follow-up time via power supply
  • Visible portion of sensor head: Ø 11 x 3 mm

Model :Movement sensor
Halogen free :Yes
Height :26mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :18mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach sideways :1.5M
Max. switching power :1000W
Material :Plastic
Response value sensitivity adjustable :No
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :3M
Remote operation :No
HVAC-control :No
Auxiliary input :No
With signal unit :No
Control current :7mA
Networkable :No
Impact resistance (IK rating) :IK03
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :30 s
Max. duty cycle :30 Min
Response value luminosity adjustable :No
Optimum mounting height :2.5M
Number of switching zones :7
With DALI interface :No
IFTTT support available :No
Max. presence range :0m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :200W
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
