B.E.G. 92905
Image is for illustrative purposes only

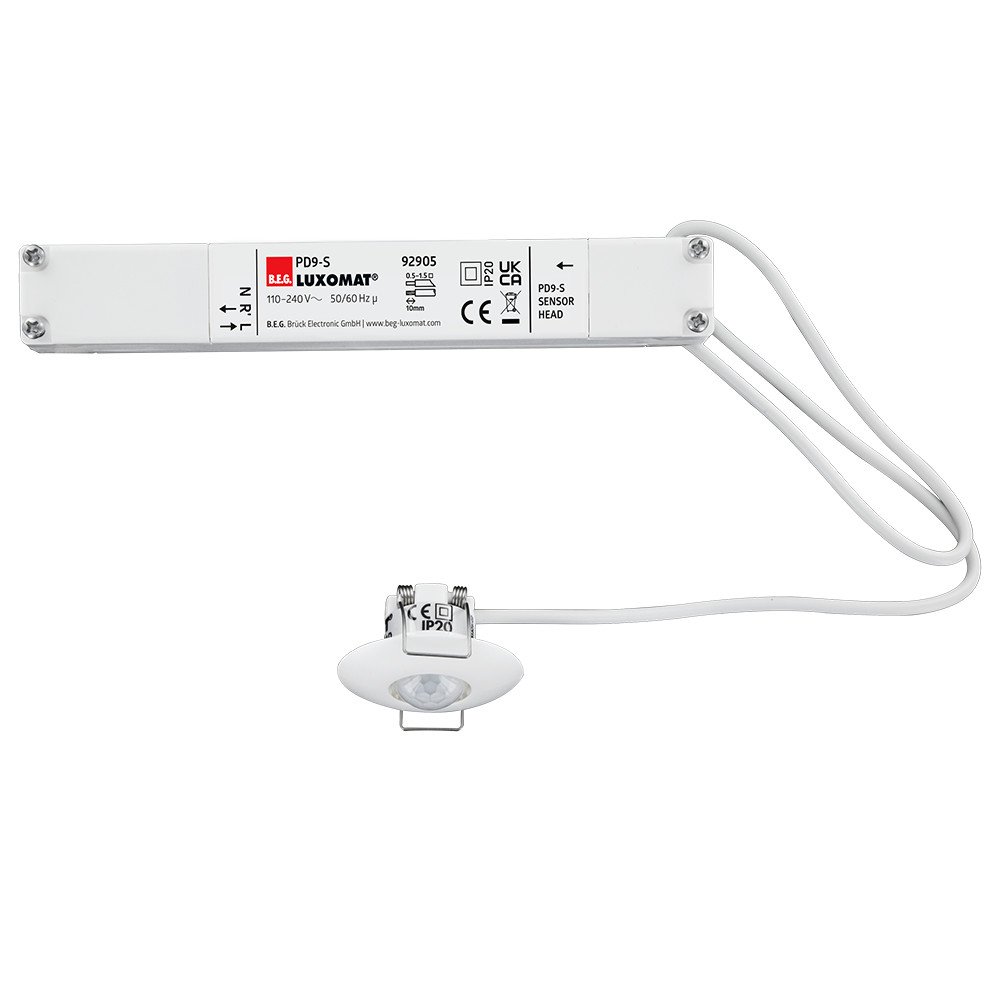

B.E.G. 92905 (PD9-S-FC) Slave Device PD9 360° FC White IP20 10m 1 Channel

Part: 92905
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Mini slave device for extending the detection area of a master device
  • Power supply passes through the hole in the ceiling for the detector (34 mm Ø)
  • Trigger pulse to master device upon detected movement independent of the ambient light level
  • Compatible with 230 V devices. Concerning exceptions please see the respective master device.
  • Spring clips for quick and easy installation in suspended ceilings and light fittings
  • Includes 45 mm cover ring and blinds

Mounting method :Other
Colour :White
Model :Movement sensor
Halogen free :Yes
Height :28mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :45mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach sideways :5M
Material :Plastic
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :10M
Remote operation :No
HVAC-control :No
RAL-number (similar) :9010
With signal unit :No
Control current :1mA
Teach-function for response value luminosity :No
Networkable :No
Impact resistance (IK rating) :IK03
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Response value luminosity adjustable :No
Optimum mounting height :2.5M
Number of switching zones :78
With DALI interface :No
IFTTT support available :No
Max. presence range :12m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
