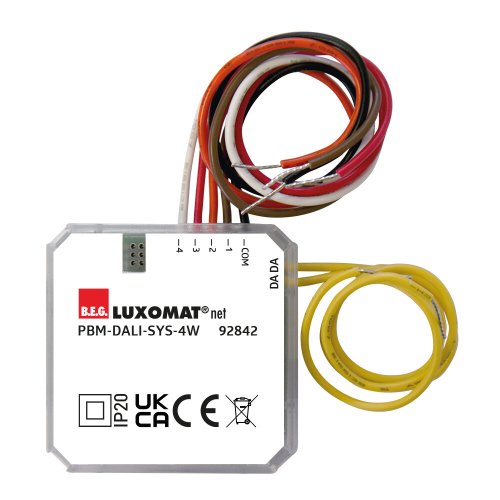

B.E.G. 92842 (PBM-DALI-SYS-4W white) Push Button Interface FM White IP20 DALI-SYS 4 Channel

Part: 92842
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Binary DALI input device for installation in in-wall sockets
  • 4 inputs for conventional push buttons, freely configurable
  • Seemless integration in B.E.G. LUXOMAT(R)net DALI-SYS
  • Operating modes: Standard, staircase or scene mode
  • Integrated LED to determine location of dismantled device
  • Integrated buzzer to determine location of installed device
  • DIP- and HEX-switch for quick commissioning with basic functionality
  • Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-SYS

Mounting method :Flush mounted
Number of inputs :4
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
External signal voltage necessary :No
Other bus systems :Other
Bus system LON :No
LED controlling :No
With LED indication :No
