B.E.G. 92831

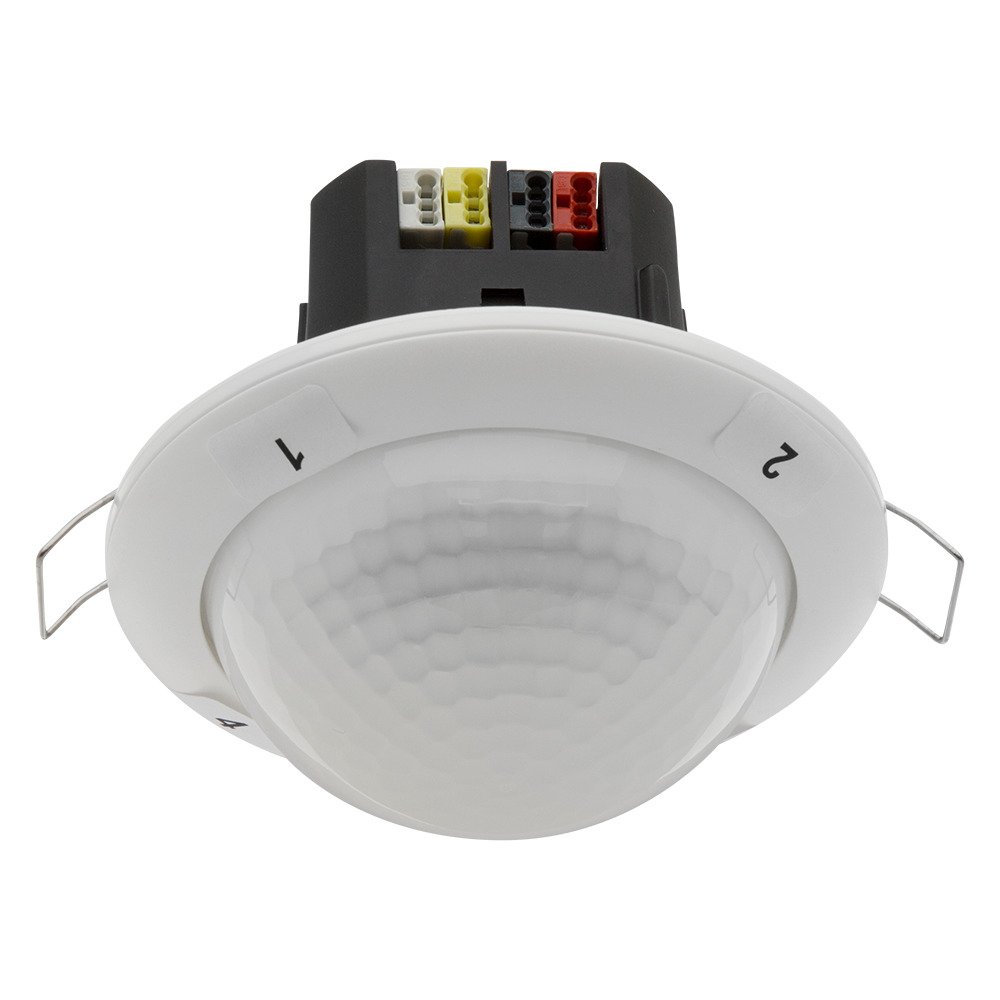

Image is for illustrative purposes only

B.E.G. 92831 (PD4N-LON-FC) Occupancy Detector 360° FC White IP20 LON 24m 4 Channel

Part: 92831
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • LON occupancy detector with integrated light sensor for daylight-dependent lighting regulation
  • Full-automatic or Semi-automatic operation mode
  • Switching or Constant Light control modes
  • Easy interface to HVAC systems
  • FT5000 LON transceiver
  • All configuration properties changeable via network variables
  • Remote control (optional)
  • Settings with the LON installation tool
  • Adjustable on and off delay for orientation light when no people are present
  • The products are supported up to and including Windows 7

Mounting method :Other
Colour :White
Model :Presence detector
Height :63mm
Surface protection :Untreated
Creep-under protection :Yes
Diameter :98mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach sideways :12M
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Bus system LON :Yes
Diameter reach on floor :24M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :1 s
Max. duty cycle :109 Min
Voltage supply over bus :Yes
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
