B.E.G. 92680
Image is for illustrative purposes only

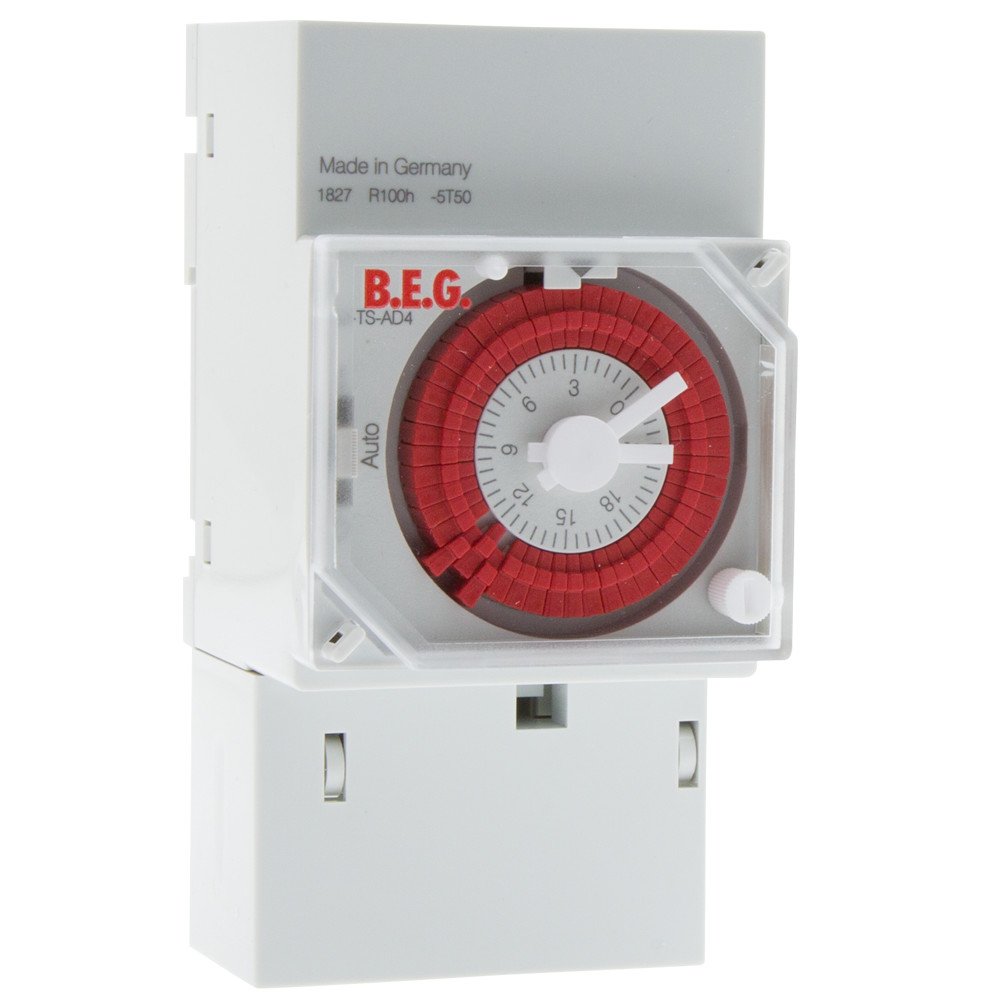

B.E.G. 92680 (TS-AD4) Time Switch AD4 DIN-rail (TH35), IP20 1 Channel

Part: 92680
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Analogue time switch for installation in switch cabinets
  • Slim format 54 mm
  • Daily program
  • Manual override switch permanently ON / AUTO
  • Captive setting keys

Mounting method :DIN rail
Width :54mm
Height :55mm
Depth :45mm
Number of channels :1
Contact type :Change-over contact
Width in number of modular spacings :3
Quartz controlled :Yes
Voltage type of supply voltage :AC
Potential free switch contact :Yes
Autonomy in years :0
Autonomy in hours :70
Degree of protection (IP rating) :IP20
Accuracy per day :2 s

Make an enquiry

...
