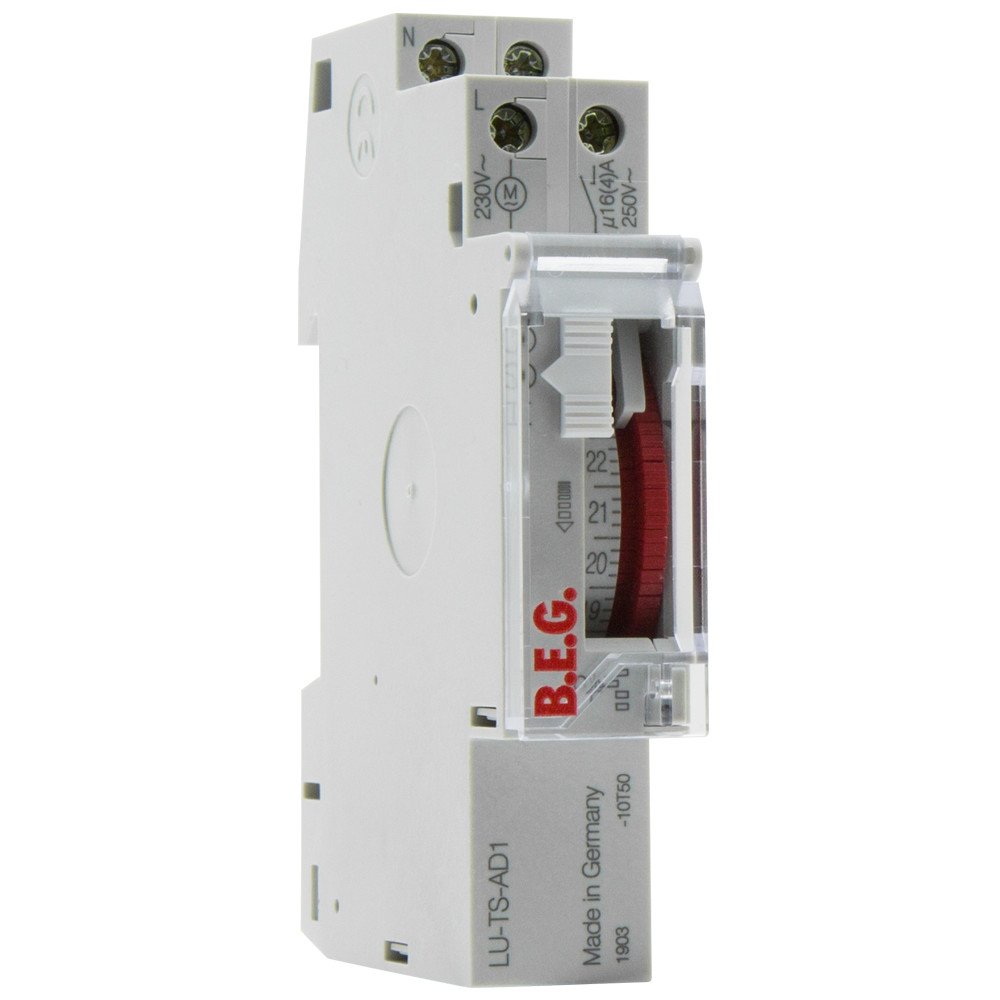

B.E.G. 92676 (TS-AD1) Time Switch AD1 DIN-rail (TH35), IP20 1 Channel

Part: 92676
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Analogue time switch for installation in switch cabinets
  • Slim format 18 mm
  • Daily program
  • Manual override switch permanently ON / AUTO
  • Captive setting keys

Mounting method :DIN rail
Width :18mm
Height :58mm
Depth :45mm
Number of channels :1
Contact type :Normally open contact
Width in number of modular spacings :1
Quartz controlled :Yes
Voltage type of supply voltage :AC
Potential free switch contact :Yes
Autonomy in years :0
Autonomy in hours :0
Nominal switching current at 250 V AC :2.5A
Degree of protection (IP rating) :IP20
Accuracy per day :1 s
