B.E.G. 92674
Image is for illustrative purposes only

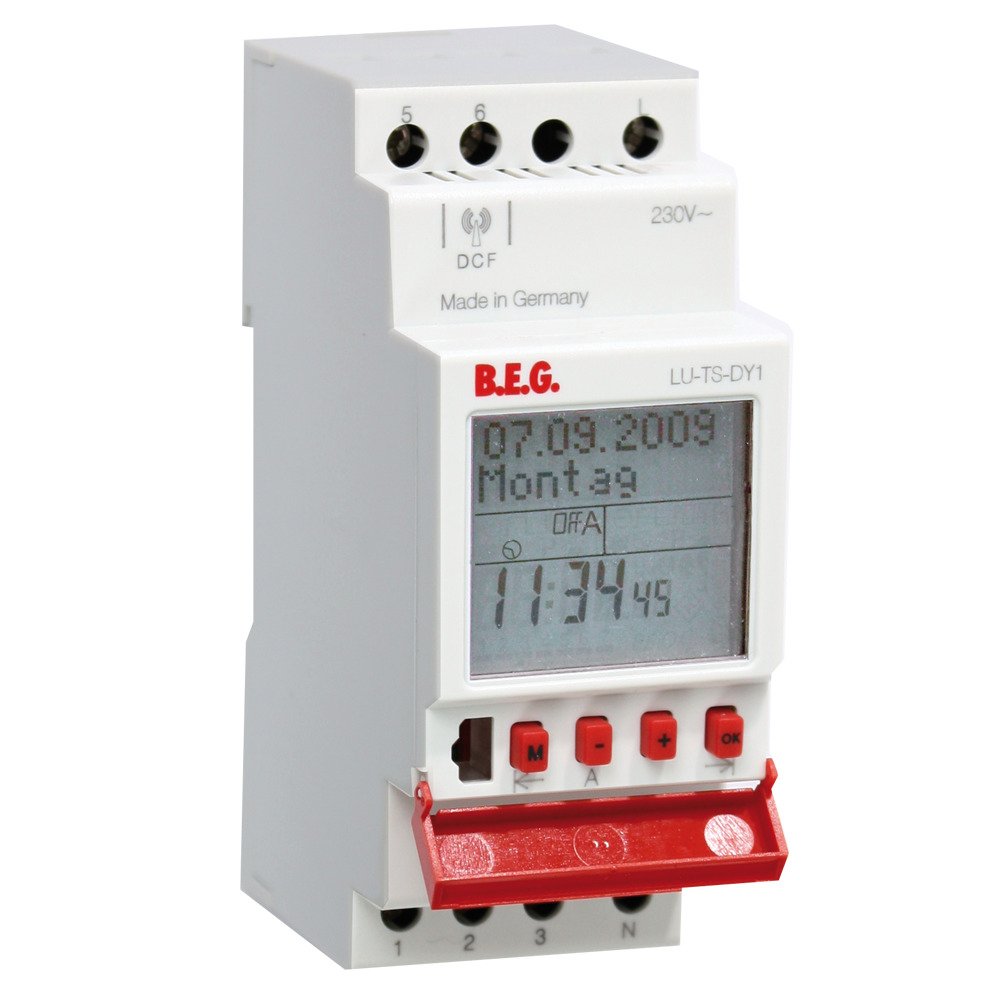

B.E.G. 92674 (TS-DY1) Time Switch DY1 DIN-rail (TH35), IP20 1 Channel

Part: 92674
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Digital time switch with year program for installation in switch cabinets
  • 1 channel
  • Compact 36 mm wide housing
  • Switching capacity 16 A
  • Permanent by date / holiday function
  • Daily, weekly and yearly program
  • 300 memory locations
  • Cycle function
  • DCF function
  • Pulse function

Mounting method :DIN rail
Width :36mm
Height :58mm
Depth :45mm
Number of memory locations :60
Astro/solar program :No
Number of channels :1
Radio-controlled :Yes
Annual program :Yes
GPS (global positioning system) :No
Width in number of modular spacings :2
60 min. program :No
24 h program :Yes
Holiday program :Yes
Random program :No
Impulse program :Yes
Cycle program :Yes
Quartz controlled :Yes
Automatic switching summer-/winter time :Yes
Manual operation :Yes
Switching preselection :Yes
Voltage type of supply voltage :AC
Potential free switch contact :Yes
External programming :No
Radio-controlled (DCF77) :Yes
Hour meter :Yes
Autonomy in years :6
Nominal switching current at 250 V AC :16A
Text guidance in display :Yes
Degree of protection (IP rating) :IP20
Accuracy per day :1 s
External pushbutton input :Yes
