B.E.G. 92656

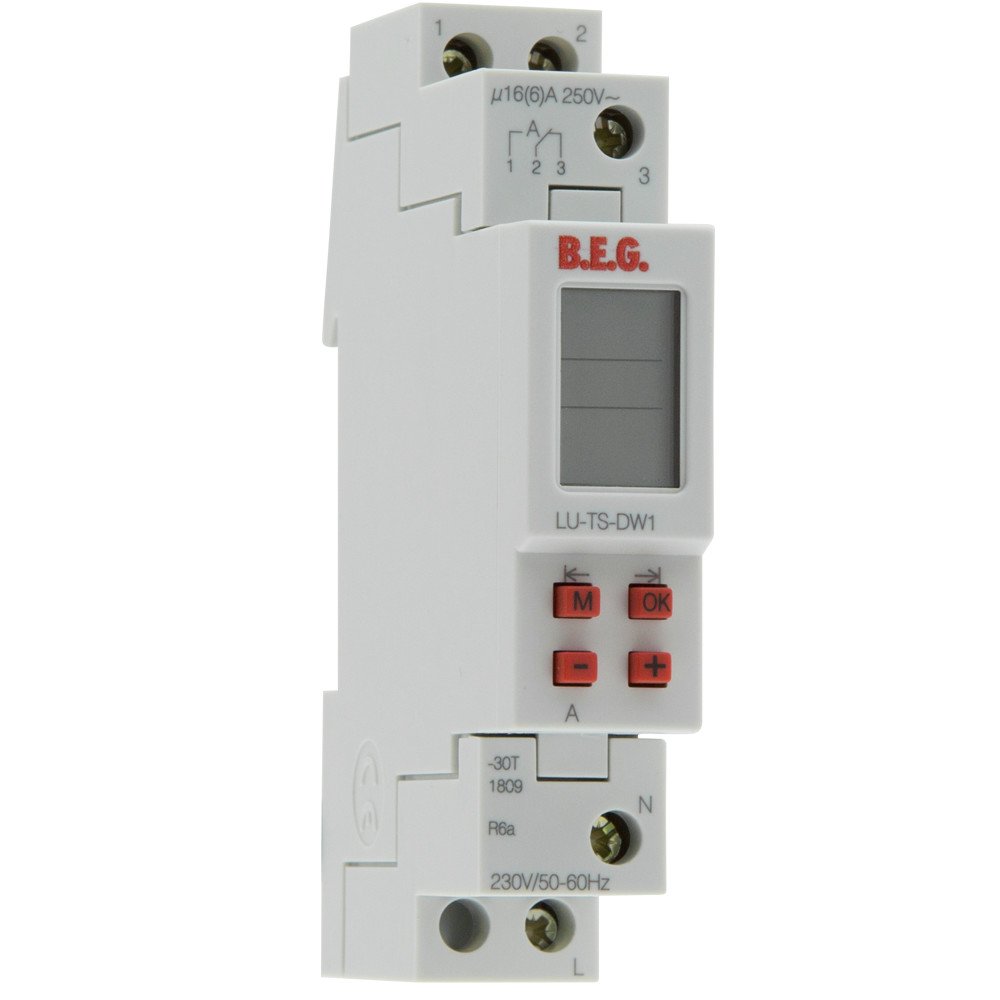

Image is for illustrative purposes only

B.E.G. 92656 (TS-DW1) Time Switch DW1 DIN-rail (TH35), IP20 1 Channel

Part: 92656
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Digital time switch with week program for installation in switch cabinets
  • 1 channel
  • Switching capacity 16 A
  • Permanent by date / holiday function
  • Daily and weekly program
  • Pulse function
  • 46 memory locations
  • Minimum interval 1 min.
  • Manual permanent mode
  • Manual override

Mounting method :DIN rail
Width :18mm
Height :58mm
Depth :45mm
Number of memory locations :46
Number of channels :1
Width in number of modular spacings :1
24 h program :Yes
Automatic switching summer-/winter time :Yes
Voltage type of supply voltage :AC
Hour meter :Yes
Autonomy in years :6
Nominal switching current at 250 V AC :16A
Degree of protection (IP rating) :IP20
