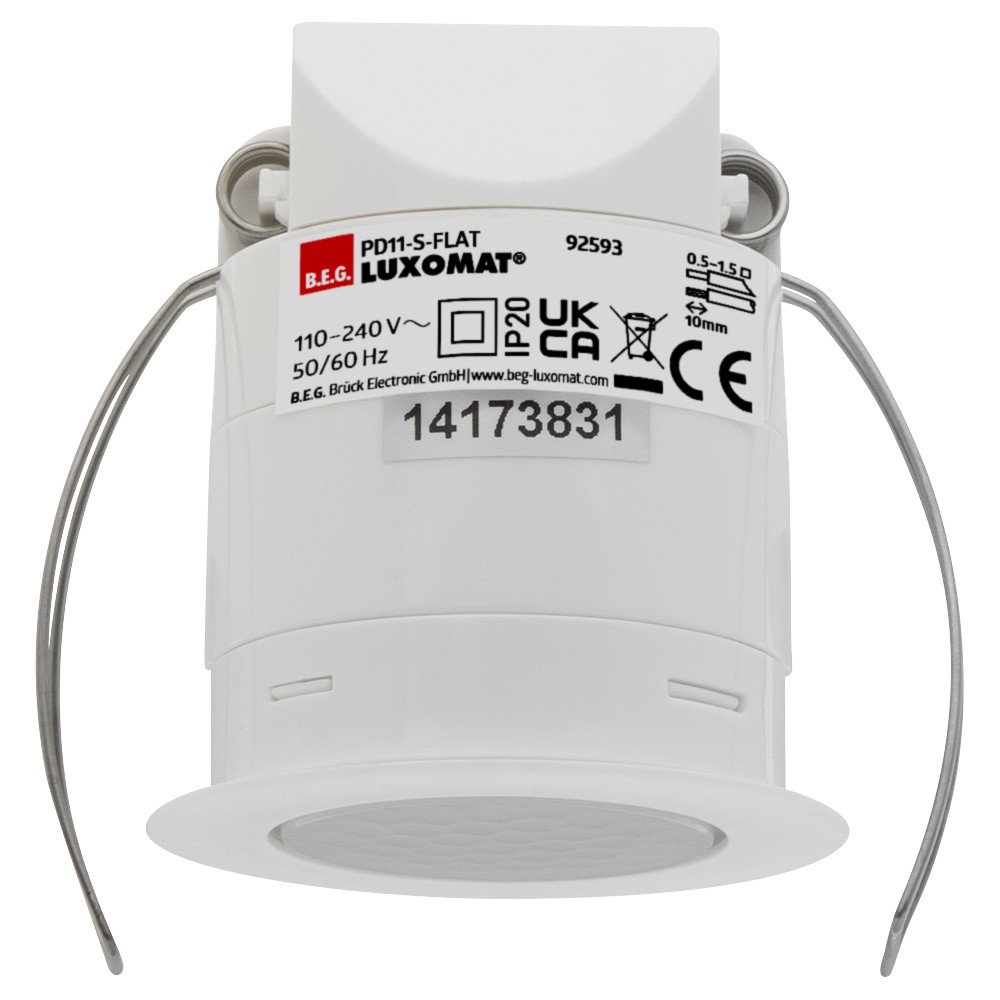

B.E.G. 92593 (PD11-S-FLAT-FC) Slave Device 360° FC White IP20 9m 1 Channel

Part: 92593
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Super flat slave device for connection to a master device
  • For extending the detection area of a Master device
  • Trigger pulse to master device upon detected movement independent of the ambient light level
  • Compatible with 230 V devices. Concerning exceptions please see the respective master device.
  • Spring clips for quick and easy installation in suspended ceilings
  • Includes blinds and clamp ring for installation into light fittings
  • With accessories for flush-mounting in ceiling and exposed concrete

Mounting method :Other
Colour :White
Model :Movement sensor
Halogen free :Yes
Height :60mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :52mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach sideways :4.5M
Material :Plastic
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :9M
Remote operation :No
HVAC-control :No
RAL-number (similar) :9010
With signal unit :No
Control current :1mA
Teach-function for response value luminosity :No
Networkable :No
Impact resistance (IK rating) :IK02
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Response value luminosity adjustable :No
Optimum mounting height :2.5M
Number of switching zones :63
With DALI interface :No
IFTTT support available :No
Max. presence range :7m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
