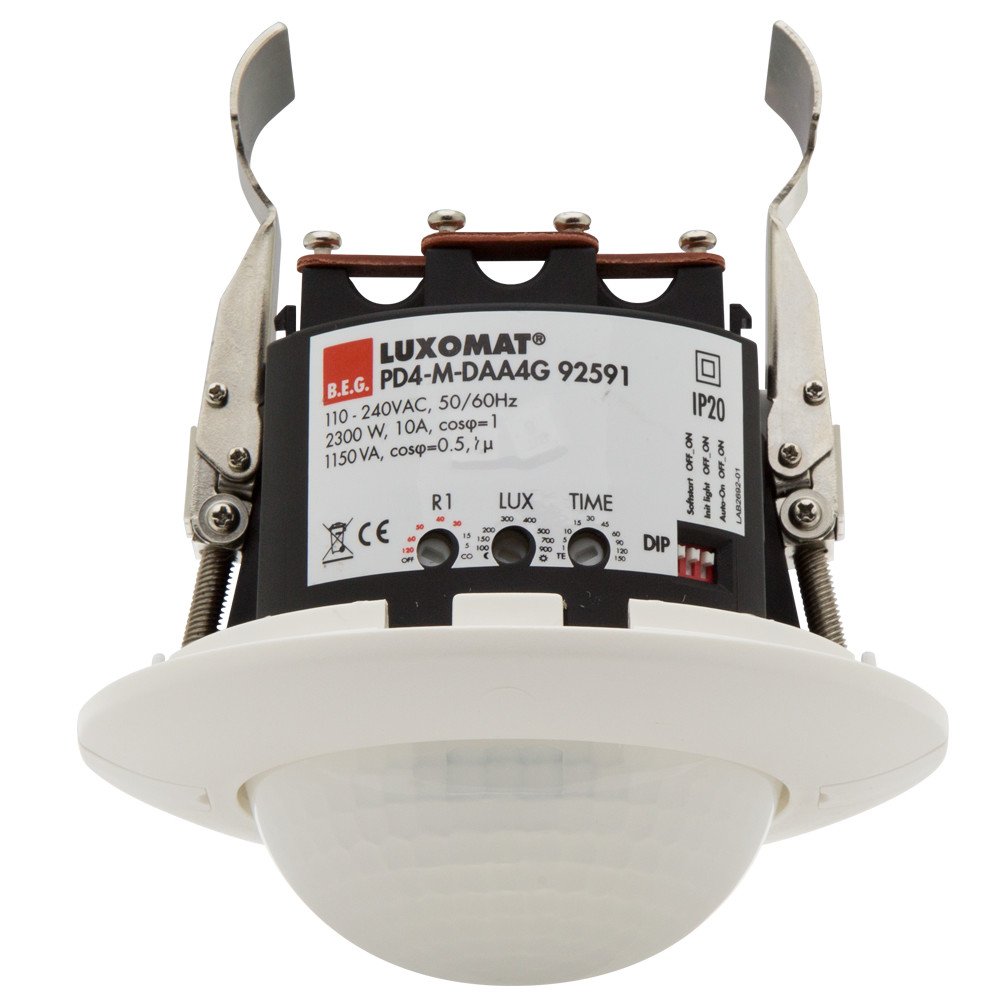

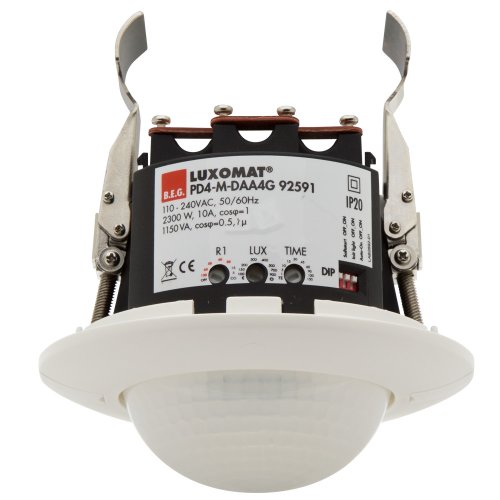

Image is for illustrative purposes only

B.E.G. 92591 (PD4-M-DAA4G-FC) Occupancy Detector 4G, 1C 360° FC White IP20 DALI 24m 1 Channel

Part: 92591
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Flexible DALI Compact solution designed for conference rooms, training rooms and classrooms
  • High-sensitivity occupancy detector with the capability to address up to 64 DALI electronic ballasts (EB) automatically, with segmented control via 4 groups
  • Quick commissioning and maintenance processes via Smartphone/Tablet App (Android, iOS) - No PC-Tool required
  • 3 lighting zones
  • A for main lighting with segmented constant light regulation via 3 DALI groups and offset control,
  • B for lectern or blackboard lighting via separate DALI group,
  • C for lectern or blackboard lighting by integrated relay
  • Powerful switching relay for different operating modes, e.g. Cut-off function for DALI ballasts, HVAC, blackboard illumination.
  • Manual switching or dimming via conventional pushbuttons
  • Detection area can be extended with up to four Slave devices of type PD4-S-DAA4G

Mounting method :Other
Colour :White
Model :Presence detector
Height :100mm
Surface protection :Untreated
Creep-under protection :Yes
Number of channels :4
Diameter :117mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Switching power :2300W
Max. reach frontally :8M
Max. reach sideways :12M
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Diameter reach on floor :24M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :Yes
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :60 s
Max. duty cycle :150 Min
Voltage supply over bus :No
Response value luminosity adjustable :Yes
Switch-off delay self-learning :No
Optimum mounting height :2.5M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
