B.E.G. 92589
Image is for illustrative purposes only

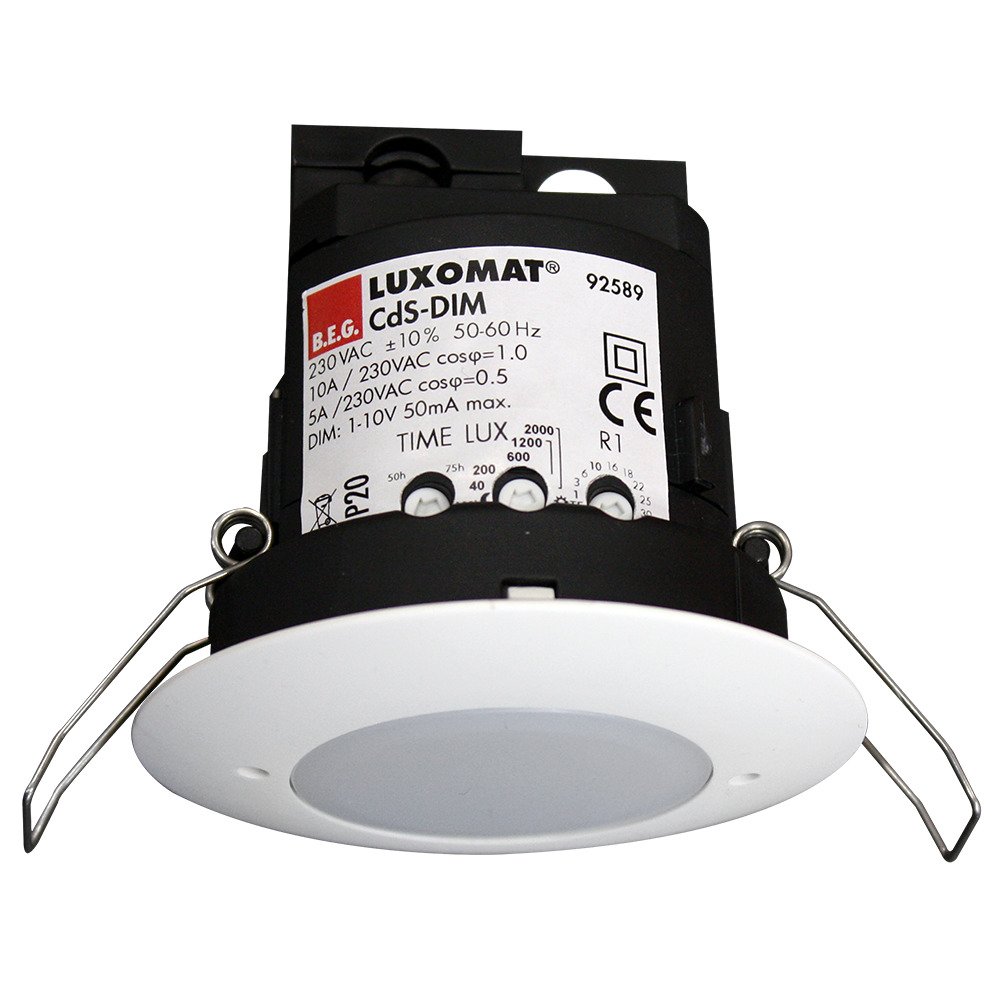

B.E.G. 92589 (CdS-DIM-FC) Photoelectric Switch DIM FC White IP20 1 Channel

Part: 92589
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Remote controllable, photo electric switch with ability to dim, for ceiling mounting
  • Illumination can be dimmed to a desired brightness value.
  • Actual light value can be read and delay time can be set using the optional infrared remote control
  • For connection of up to 50 EB
  • Constant light regulation
  • Dynamic switch-on delay
  • Relay with tungsten pre-make contact, optimised for LED loads
  • Avoidance of standby losses of the lighting system in accordance with EnEV DIN V 18599-4

Nominal voltage :240V
Mounting method :Other
Colour :White
Halogen free :Yes
Contacts :1 make contact (NO)
Surface protection :Untreated
Switching-on delay :0 s
Switch-off delay :0 s
Material qualifier :Other
Max. switching current (resistive load) :10A
Max. switching power :2300W
Material :Plastic
RAL-number (similar) :9010
Transparent :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
