B.E.G. 92587
Image is for illustrative purposes only

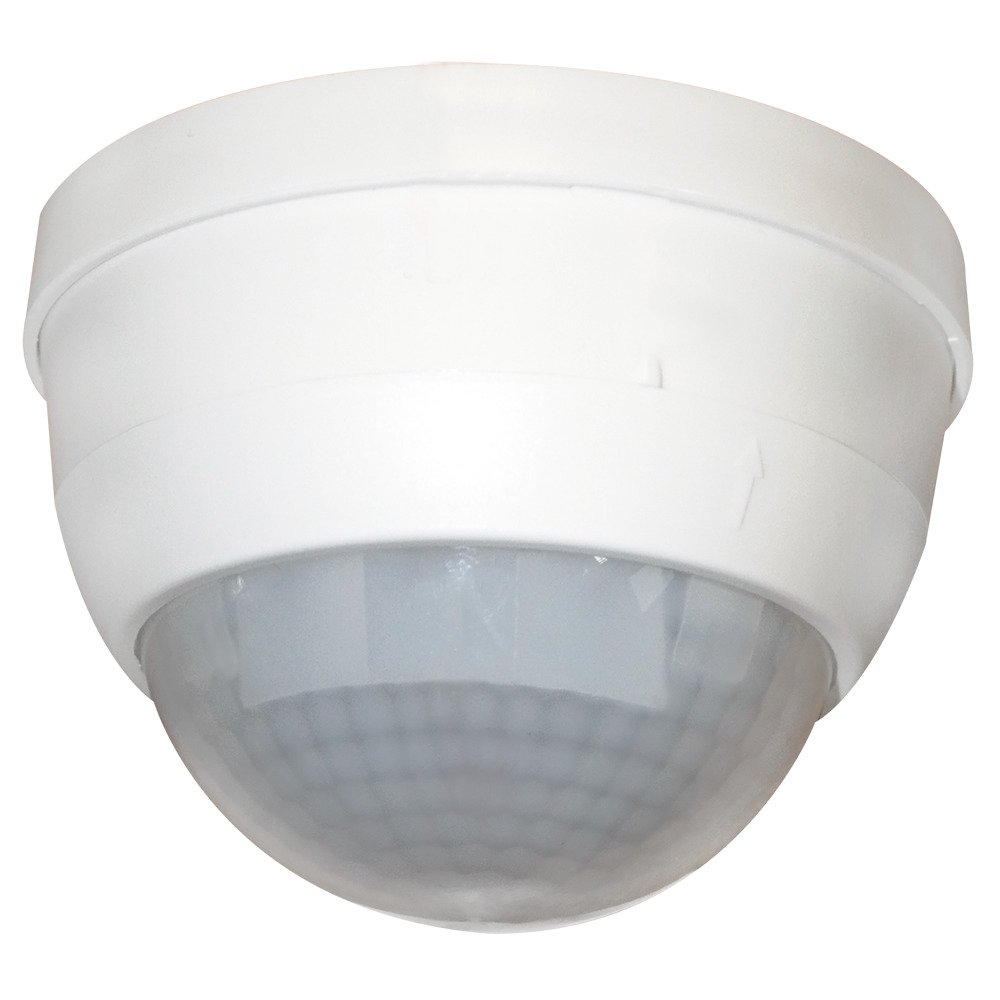

B.E.G. 92587 (PD4-M-1C-C-SM) Occupancy Detector C 360° SM White IP54 40m 1 Channel

Part: 92587
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Occupancy detector designed for corridors
  • One potential-free (dry) switching contact
  • Version as master device
  • Detection area can be extended by using slave devices
  • Manual switching via push-button possible
  • Additional functions can be set up using the optional remote control.
  • Factory settings 10 min and 500 lux
  • There are markings to ensure correct alignment during installation

Mounting method :Surface mounted
Colour :White
Model :Presence detector
Halogen free :Yes
Height :76mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :101mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach sideways :20M
Max. switching power :2300W
Max. starting current :165A
Material :Plastic
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :24M
Remote operation :Yes
HVAC-control :No
Auxiliary input :No
RAL-number (similar) :9010
With signal unit :No
Control current :3mA
Teach-function for response value luminosity :Yes
Networkable :No
Forced switch off :Yes
Impact resistance (IK rating) :IK04
With connection cable :No
Degree of protection (IP rating) :IP54
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :15 s
Max. duty cycle :30 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :1200
With DALI interface :No
IFTTT support available :No
Max. presence range :0m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :300W
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
