B.E.G. 92369

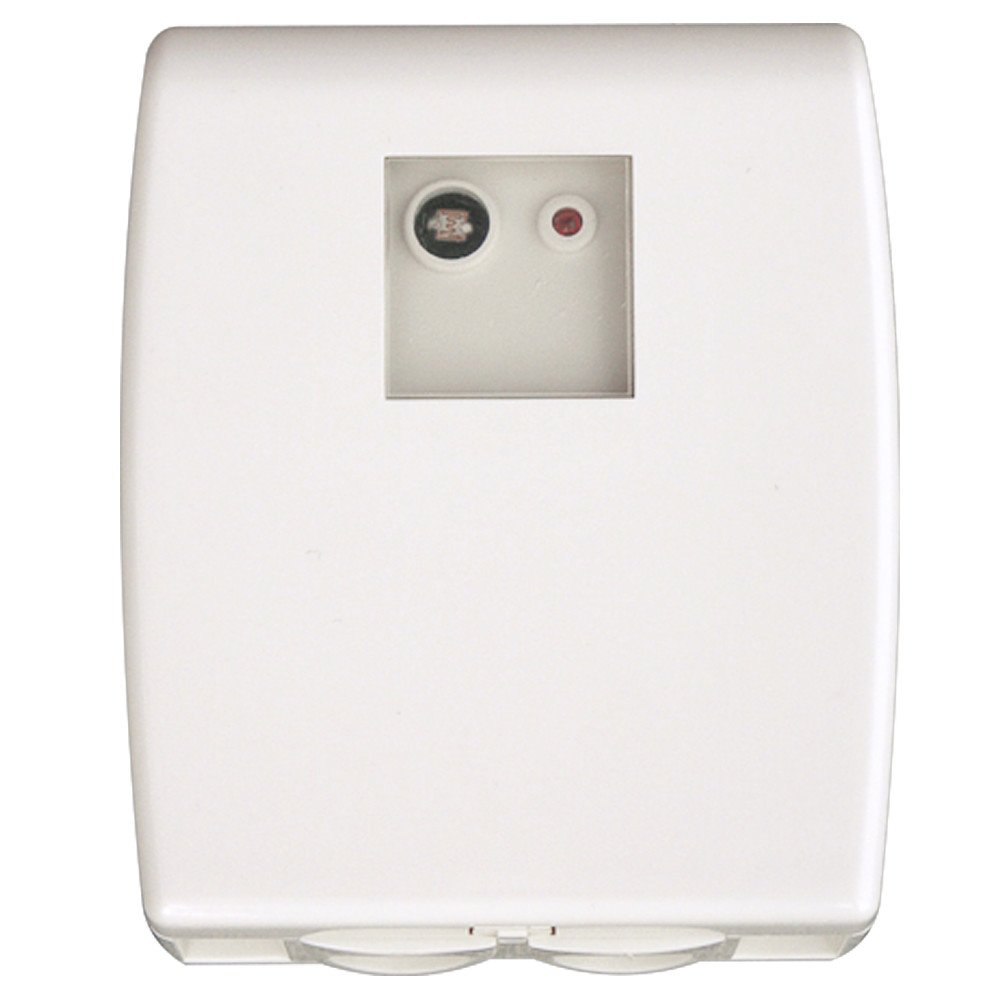

Image is for illustrative purposes only

B.E.G. 92369 (CdS-SM) Photoelectric switch SM White IP54 1 Channel

Part: 92369
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Photoelectric switch for automatically switching
  • Activation and deactivation delay with self-learning deactivation-light value
  • Integrated automatic function (10 Lux / 40 sec. activation / 120 sec. deactivation delay)
  • LED adjustment aid (without delay) for adjustment of the switch-on threshold
  • Light value and activation/deactivation delay may be set from the outside using the potentiometer
  • Double cable inlet from underneath possible
  • Wall and mast installation

Nominal voltage :240V
Mounting method :Surface mounted
Colour :White
Halogen free :Yes
Contacts :1 make contact (NO)
Surface protection :Other
Switching-on delay :0 s
Switch-off delay :0 s
Material qualifier :Other
Max. switching current (resistive load) :10A
Max. switching power :2300W
Material :Plastic
Transparent :No
Surface finish :Matt
Degree of protection (IP rating) :IP54
