B.E.G. 92320

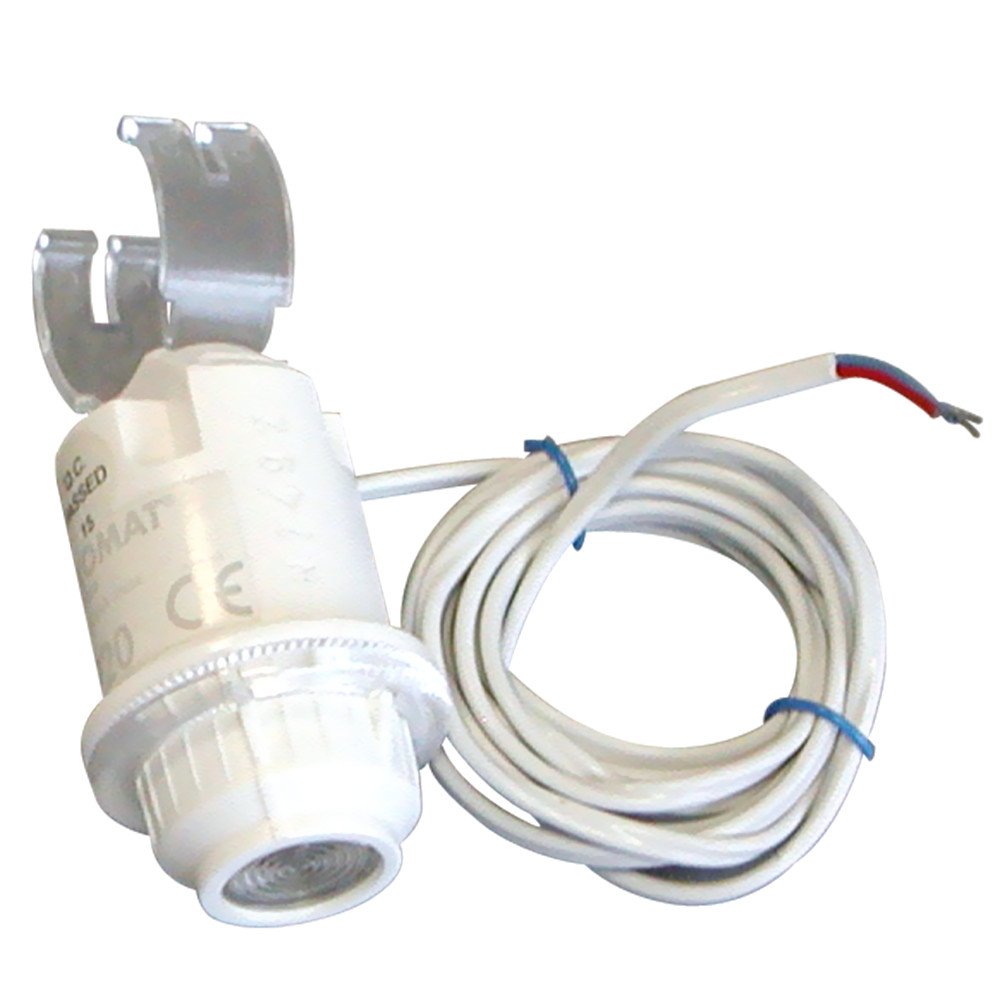

Image is for illustrative purposes only

B.E.G. 92320 (MiniClip LR1) Occupancy-Independent Regulating Mode (Photoelectric Switch) Clamp

Part: 92320
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • MiniClip LR1 light sensor with mixed light measurement for constant light control, to be clipped on to the T5 and T8 fluorescent lamps
  • 1 - 10 V interface for controlling analog, dimmable ballasts
  • Continuous dimming is used to implement constant light control for room lights that adapt to the amount of daylight.
  • The light value to be kept constant in the room may be set by turning the knurled sensor cap.

Nominal voltage :10V
Mounting method :Other
Method of operation :Rotating button
Light value memory :No
Auxiliary input :No
Control current :1mA
Activated by movement sensor :No
Activated by RF remote control :No
Activated by IR remote control :No
Activated by presence detector :No
Activated by button :No
Transparent :No
Dimming 1-10 V :Yes
Dimming DALI :No
Dimming manufacturer's proprietary system :No
Dimming Touch and Dim :No
Dimming with push-button :No
Dimming DSI :No
