B.E.G. 92305
Image is for illustrative purposes only

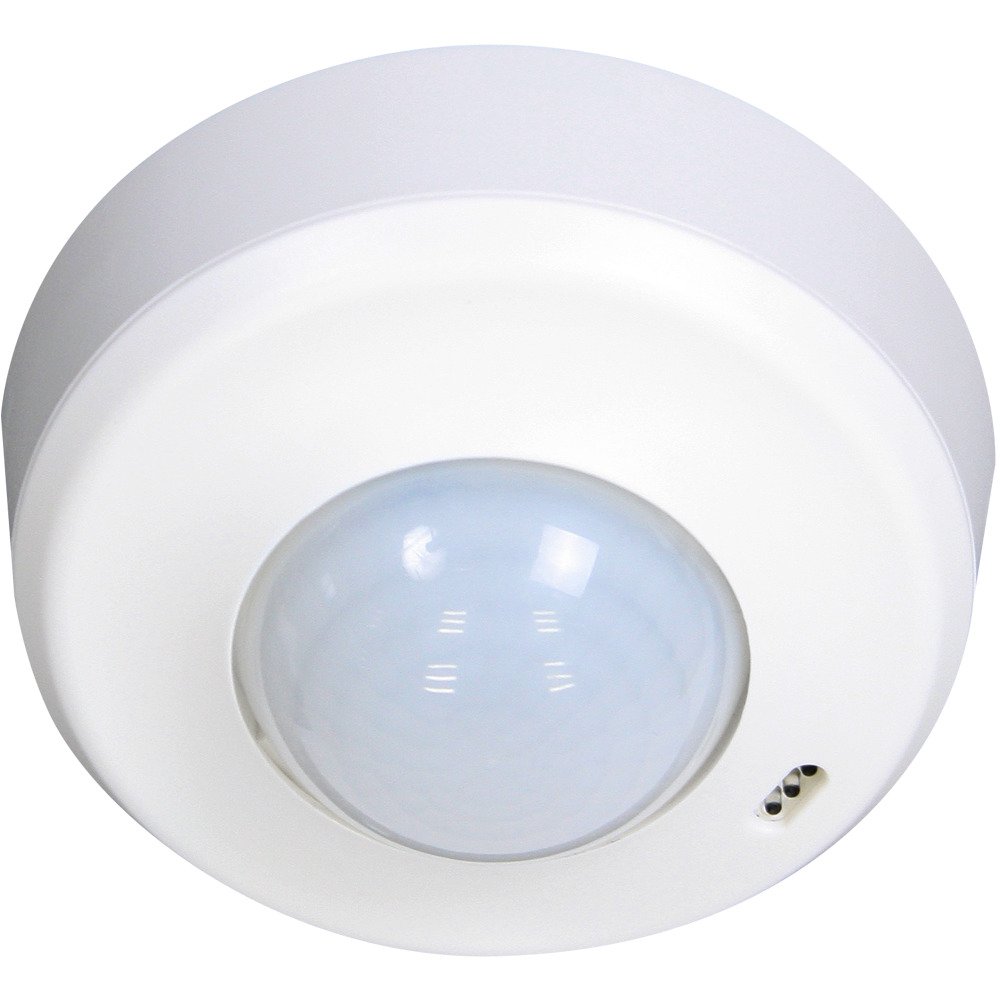

B.E.G. 92305 (PD2-M-2C-12-48V-RR-SM) Occupancy Detector RR 12-48V 360° SM White IP20 10m 2 Channel

Part: 92305
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Occupancy detector with operating voltage of 12-48 V
  • Two potential-free (dry) channels
  • Can be used as either Master device or Slave device
  • Manual switching via push-button possible
  • Additional functions can be set up using the optional remote control.
  • Factory settings 10 min and 500 lux (15 min HVAC)

Mounting method :Surface mounted
Colour :White
Model :Presence detector
Halogen free :Yes
Height :47mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC/DC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :98mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach sideways :5M
Material :Plastic
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :10M
Remote operation :Yes
HVAC-control :Yes
Auxiliary input :Yes
RAL-number (similar) :9010
With signal unit :No
Control current :4mA
Teach-function for response value luminosity :Yes
Networkable :No
Forced switch off :Yes
Impact resistance (IK rating) :IK05
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :Yes
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :15 s
Max. duty cycle :30 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :78
With DALI interface :No
IFTTT support available :No
Max. presence range :12m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
