B.E.G. 92255 (PD4-M-2C-FM) Occupancy Detector 360° FC White IP20 24m 2 Channel

Part: 92255
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Occupancy detector with extended detection area

One channel for light switching

  • One additional potential-free (dry) contact for HVAC
  • Version as master device
  • Detection area can be extended by using slave devices
  • Manual switching via push-button possible
  • Additional functions can be set up using the optional remote control.
  • Alarm pulse: the detector triggers only when three movements are detected within 9 seconds
  • Factory settings 10 min and 500 lux (15 min HVAC)
  • Zero crossing switching

Voltage:110 – 240 V AC 50 / 60 Hz

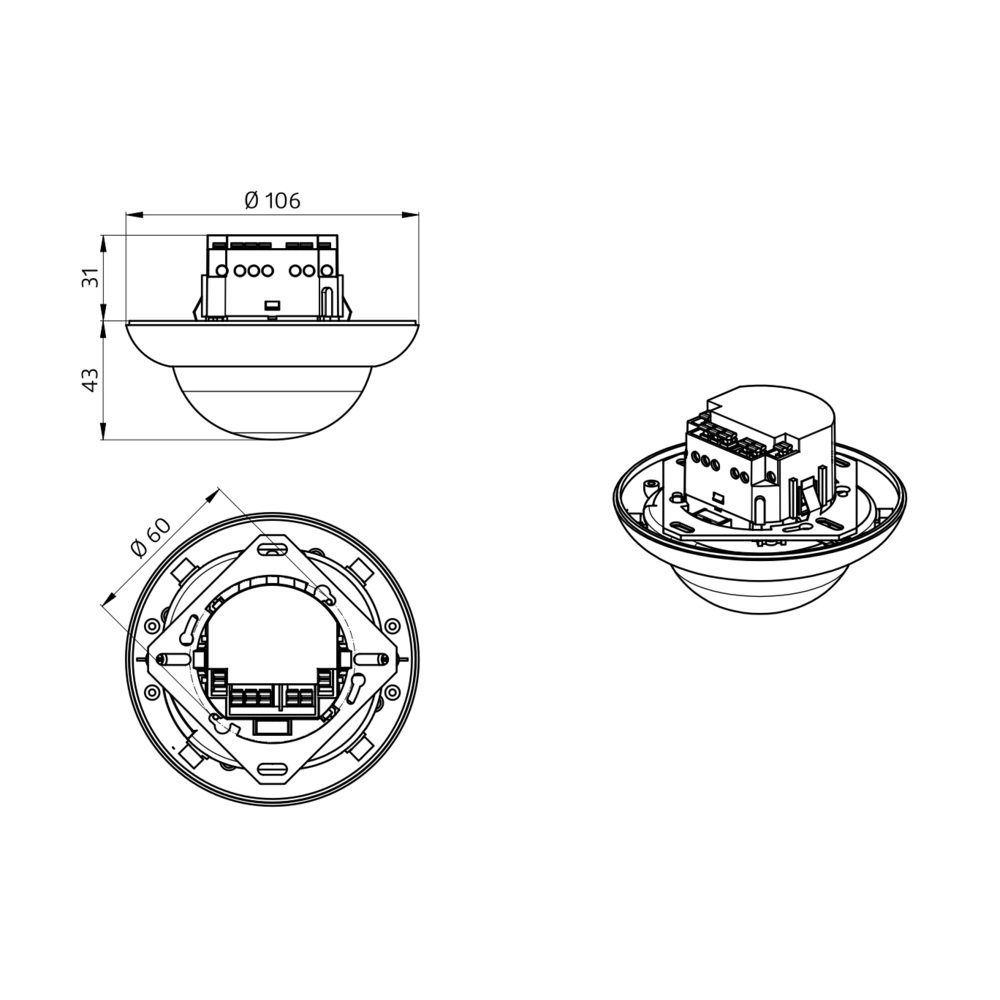

Dimensions:FM= Ø 104 x 70 mm
Power consumption:approx. 0.5 W
Detection area:horizontal 360° (Ceiling mounting)
Range:max. Ø 24 m across, max. Ø 8 m towards max. Ø 6.4 m seated
Monitored area (tangential movement):450 m² / 2.5 m mounting height
Mounting height min./max./recommended:2 m / 10 m / 2.5 m
Degree / class of protection:FM= IP20 / Class II
Impact strength:IK04
Ambient temperature:-25 °C to +50 °C
Housing:polycarbonate, UV-resistant
Material color:white mat, similar to RAL9010
Channel 1 (lighting control):
Switching power:2300 W, cos φ = 1, 1150 VA, cos φ = 0.5, 300 W LED, max. inrush current Ip (20 ms) = 165 A, max. inrush current Ip (200 µs) = 800 A
Type of contact (k):1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time:15 sec – 30 min, Pulse
Switch-on threshold:10 – 2000 Lux
Channel 2 (HVAC control potential-free (dry)):
Switching power:3 A (230 V), cos φ = 1
Type of contact:1x dry NO contact
Follow-up time:5 min – 120 min, Alarm pulse, Pulse
Light measuring:Mixed light measuring
