B.E.G. 92251
Image is for illustrative purposes only

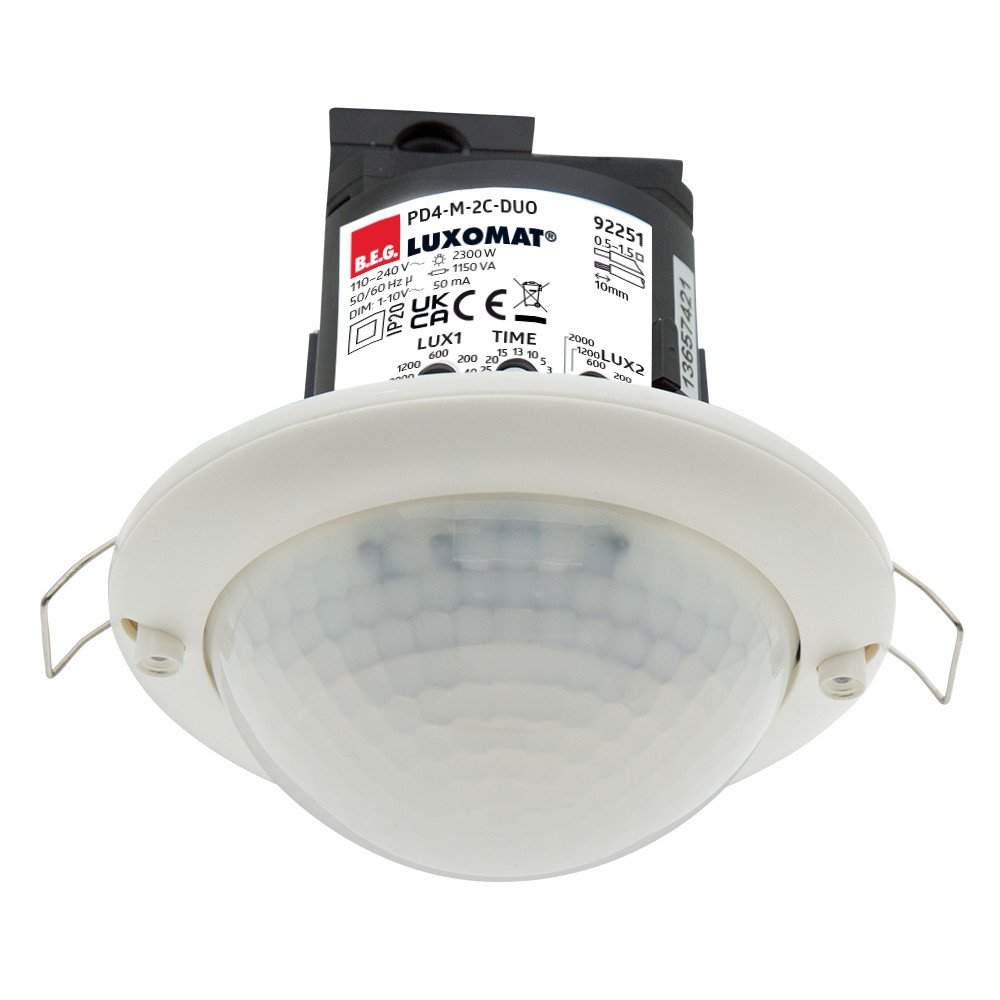

B.E.G. 92251 (PD4-M-2C-DUO-FC) Occupancy Detector 360° FC White IP20 24m 2 Channel

Part: 92251
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Occupancy detector for two separate lighting groups
  • One common detection area
  • Two independent, movable light sensors
  • Manual switching via two push-buttons possible
  • Version as master device
  • Detection area can be extended by using slave devices
  • Additional functions can be set up using the optional remote control.
  • Factory settings 10 min and 500 lux

Mounting method :Other
Colour :White
Model :Presence detector
Halogen free :Yes
Height :103mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :97mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach sideways :12M
Max. switching power :2300W
Max. starting current :165A
Material :Plastic
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :24M
Remote operation :Yes
HVAC-control :Yes
Auxiliary input :Yes
RAL-number (similar) :9010
With signal unit :No
Control current :2mA
Teach-function for response value luminosity :Yes
Networkable :No
Forced switch off :Yes
Impact resistance (IK rating) :IK04
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :60 s
Max. duty cycle :30 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :450
With DALI interface :No
IFTTT support available :No
Max. presence range :32m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :300W
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
