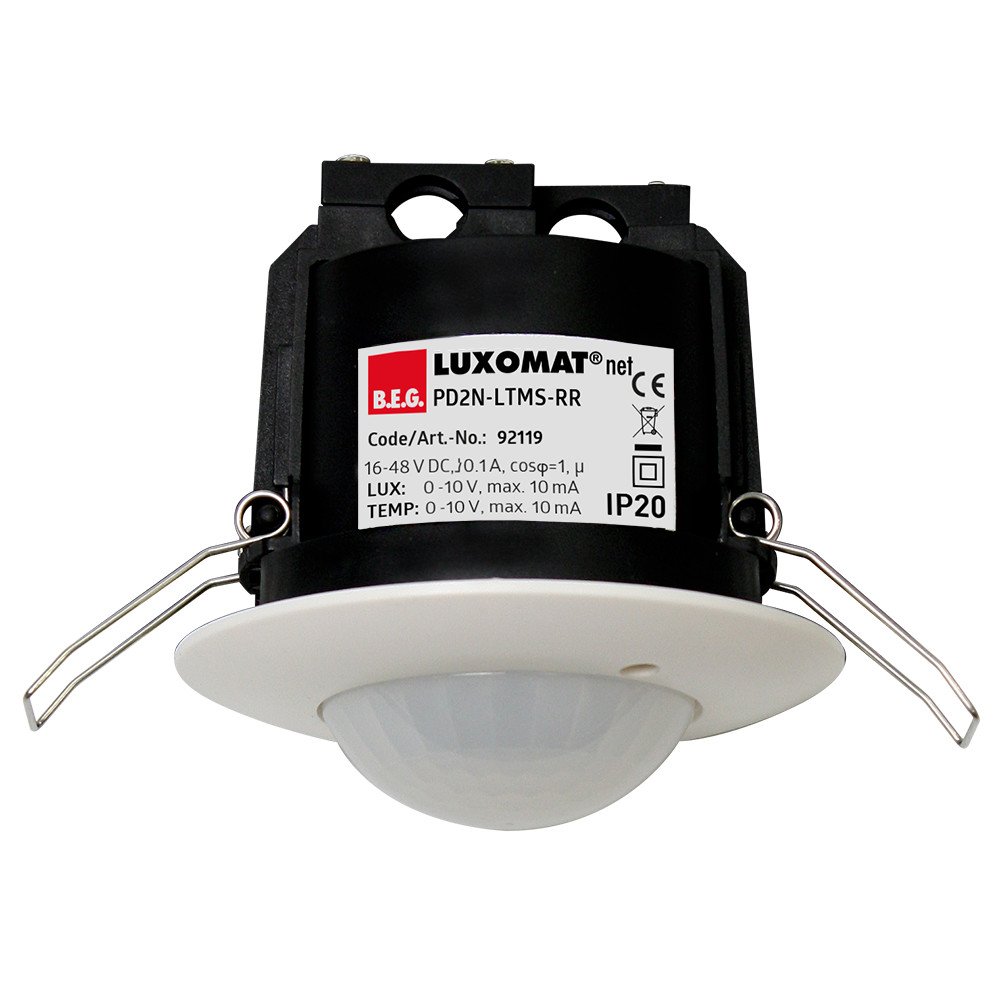

B.E.G. 92119 (PD2N-LTMS-RR-FC) Occupancy Detector LTMS-RR 360° FC White IP20 LTMS 10m 1 Channel

Part: 92119
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Multi-sensor for acquisition of data concerning occupancy (presence), temperature, and brightness.
  • For integration into proprietary bus system
  • Output of motion detection via switch contact
  • Output of current light and temperature values as analogue voltage
  • Fine adjustment of output values for light measurement and temperature via potentiometer on device
  • Additional functions can be set up using the optional remote control.

Mounting method :Other
Colour :White
Model :Presence detector
Halogen free :Yes
Height :83mm
Creep-under protection :Yes
Voltage type :DC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :80mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach frontally :6M
Max. reach sideways :5M
Material :Plastic
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :10M
Remote operation :Yes
HVAC-control :No
RAL-number (similar) :9010
With signal unit :No
Teach-function for response value luminosity :Yes
Networkable :No
Impact resistance (IK rating) :IK05
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :No
Transparent :No
Animal zone :No
Min. switch-on time :1 s
Max. duty cycle :60 Min
Response value luminosity adjustable :No
Optimum mounting height :2.5M
Number of switching zones :78
With DALI interface :No
IFTTT support available :No
Max. presence range :12m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
