B.E.G. 91102
Image is for illustrative purposes only

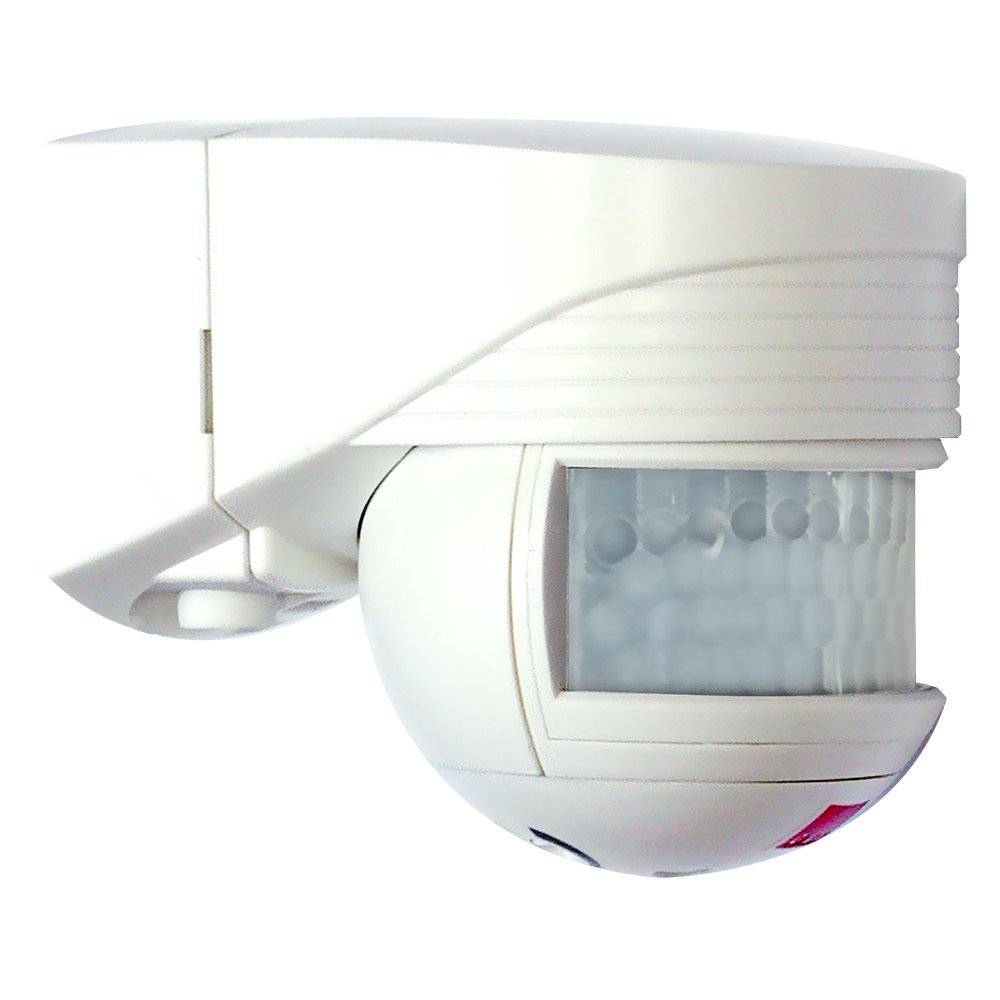

B.E.G. 91102 (LC-Click 200 white) Motion Detector 200° Wall Mounting White IP44 12m 1 Channel

Part: 91102
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Motion detector with detection area of 200°
  • Adjustable ball head
  • Simple mounting thanks to plug base
  • Detection area can be restricted with blinds

Mounting method :Surface mounted
Width :78mm
Model :Movement sensor
Halogen free :No
Height :80mm
Depth :103mm
Creep-under protection :No
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Suitable for wall mounting :Yes
Staircase monitoring :No
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach frontally :5M
Max. reach sideways :12M
Max. switching power :1000W
Max. starting current :10A
Material :Plastic
Response value sensitivity adjustable :No
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :20M
Remote operation :No
HVAC-control :No
Constant light control :No
Auxiliary input :No
RAL-number (similar) :9010
With signal unit :No
Teach-function for response value luminosity :No
Networkable :No
Forced switch off :No
With connection cable :No
Degree of protection (IP rating) :IP44
Alarm function :No
Transparent :No
Animal zone :Yes
Surface finish :Matt
Min. switch-on time :4 s
Max. duty cycle :10 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2M
Number of switching zones :250
With DALI interface :No
IFTTT support available :No
Max. presence range :0m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :200W
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :No
Antibacterial treatment :No
