B.E.G. 91008
Image is for illustrative purposes only

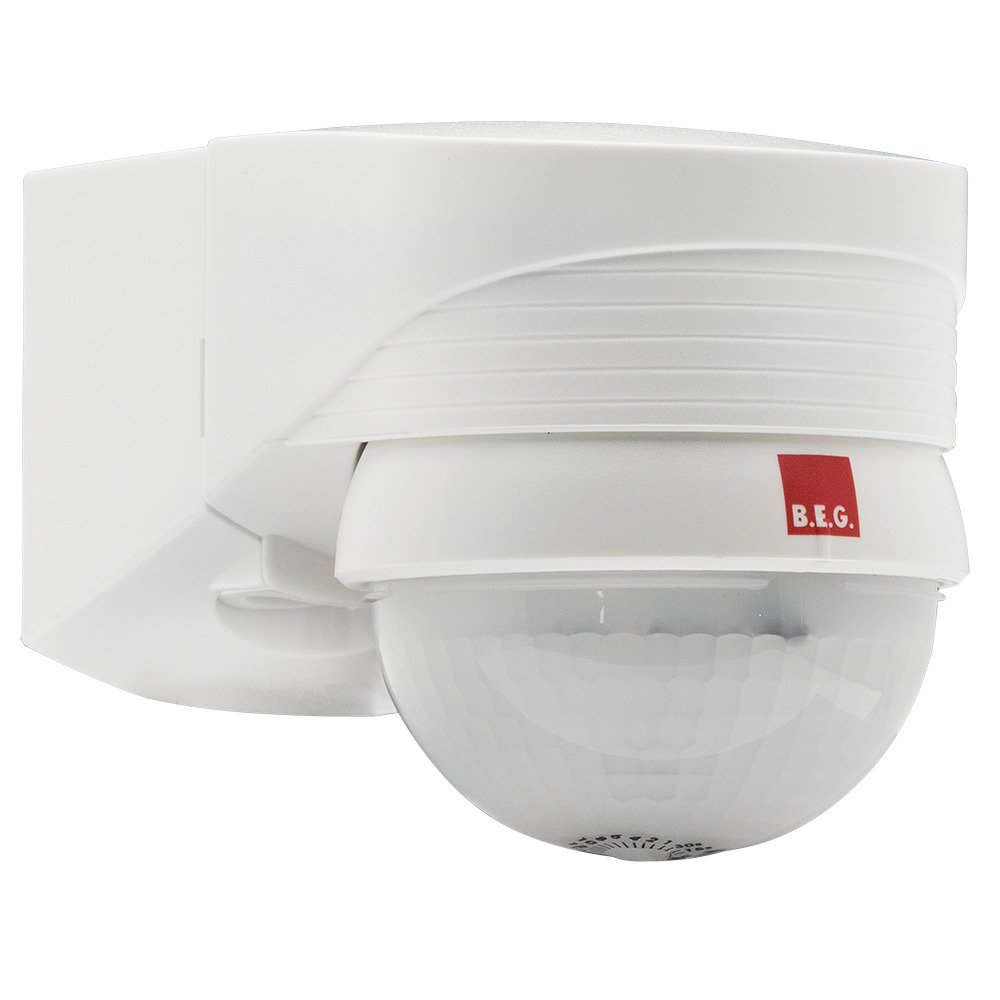

B.E.G. 91008 (LC-plus 280 white) Motion Detector 280° Mounting Bracket f. White IP54 16m 1 Channel

Part: 91008
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Motion detector with downward detection for gapless monitoring
  • Adjustable ball head
  • Zero crossing switching
  • Additional functions can be set up using the optional remote control.
  • Easy mounting thanks to plug-in base
  • Detection area can be restricted with blinds
  • Special socket for external corner mounting included
  • Factory settings 3 min and 20 lux

Colour :White
Width :68mm
Model :Movement sensor
Halogen free :Yes
Height :78mm
Depth :110mm
Surface protection :Untreated
Creep-under protection :No
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Suitable for wall mounting :Yes
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach frontally :9M
Max. reach sideways :16M
Max. switching power :2000W
Material :Plastic
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :20M
Remote operation :Yes
HVAC-control :No
Auxiliary input :No
RAL-number (similar) :9010
With signal unit :No
Control current :2mA
Teach-function for response value luminosity :Yes
Networkable :No
Impact resistance (IK rating) :IK02
With connection cable :No
Degree of protection (IP rating) :IP54
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :15 s
Max. duty cycle :16 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :620
With DALI interface :No
IFTTT support available :No
Max. presence range :0m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :300W
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :No
Antibacterial treatment :No
