B.E.G. 90404
Image is for illustrative purposes only

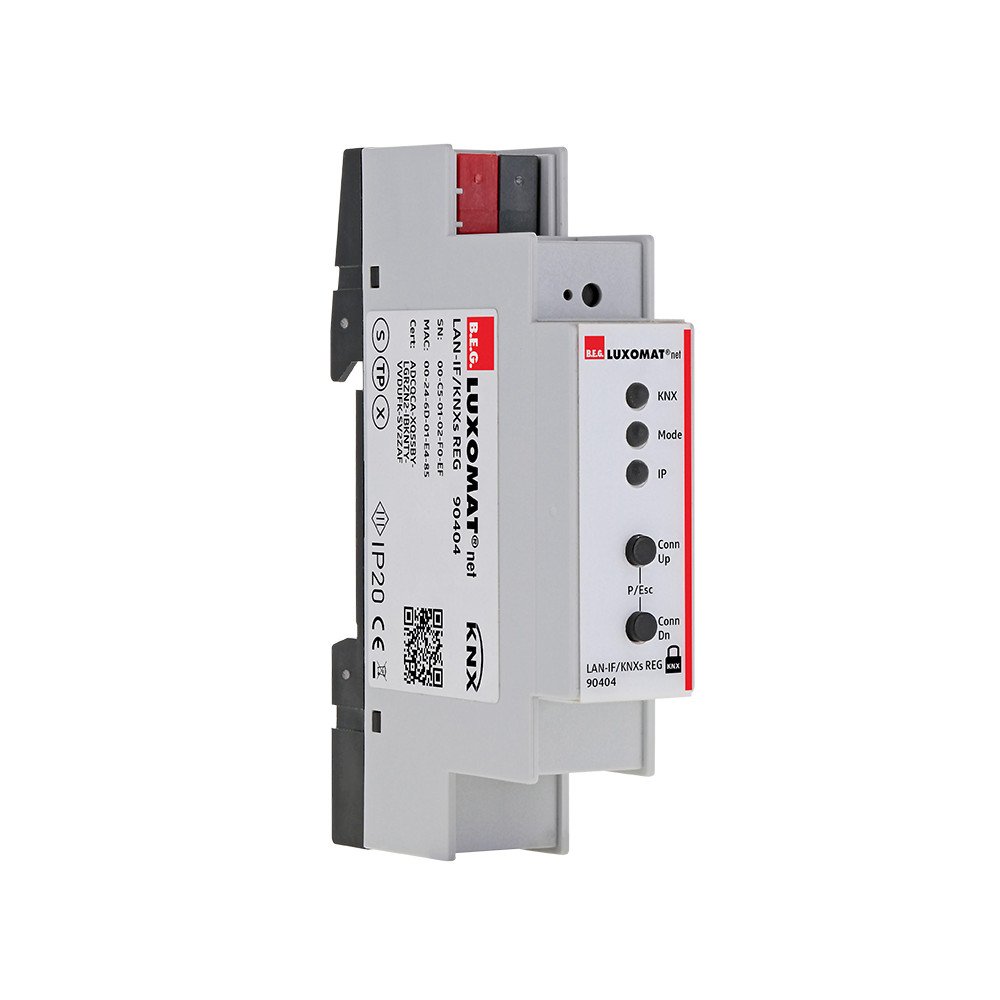

B.E.G. 90404 (LAN-IF/KNXs REG white) KNX IP interface DIN-rail (TH35), White IP20 KNX Secure

Part: 90404
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • The LAN-IF/KNXs REG serves as a secure interface between a LAN (IP, Ethernet) and KNX
  • Can be used as programming interface for the ETS
  • As KNX Secure Interface (tunneling) the device prevents unauthorized access to the system
  • Up to 8 connections simultaneously
  • The security option can be activated or deactivated in the ETS.
  • The LEDs indicate operating conditions as well as communication errors on the KNX bus

Mounting method :DRA (DIN-rail adapter)
Bus system KNX :Yes
Bus system radio frequent :No
Bus system Powernet :No
Width in number of modular spacings :1
Other bus systems :None
Bus system LON :No
Bus system KNX radio :No

Make an enquiry

...
