B.E.G. 90403

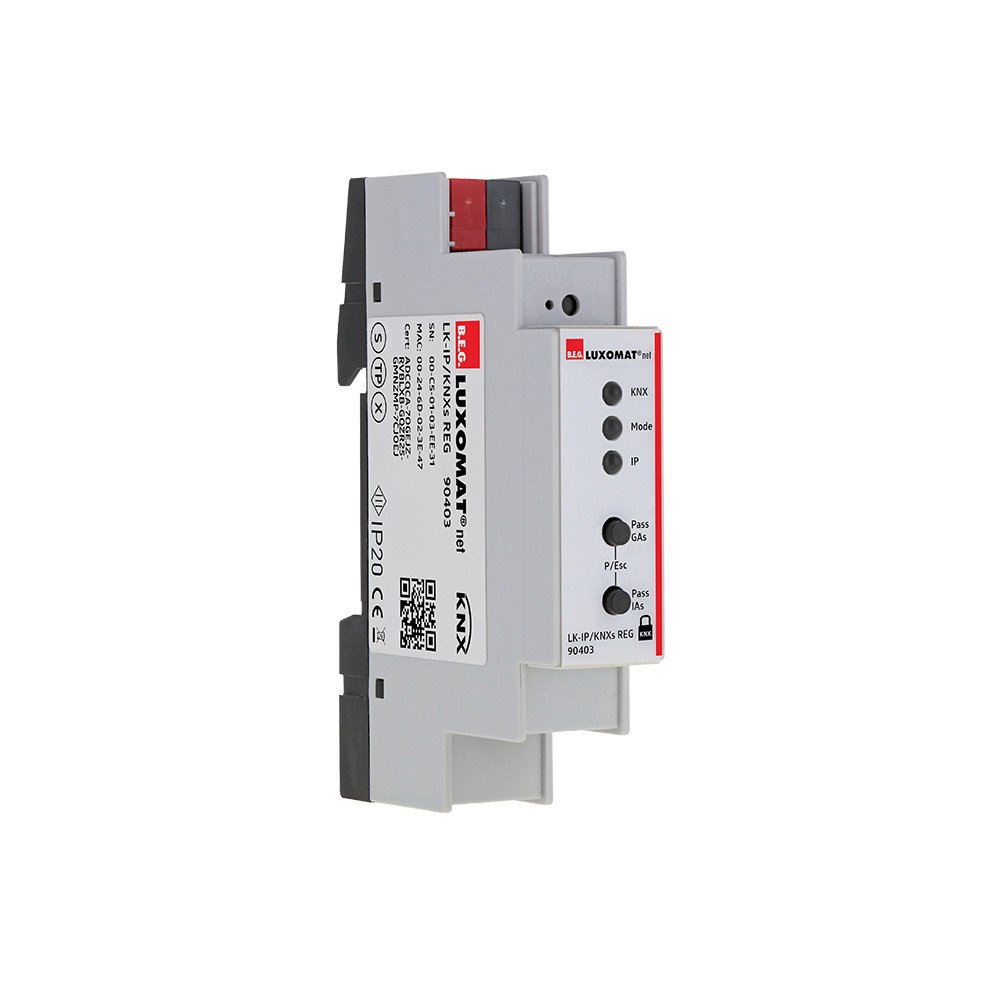

Image is for illustrative purposes only

B.E.G. 90403 (LK-IP/KNXs REG white) KNX IP Router DIN-rail (TH35), White IP20 KNX Secure

Part: 90403
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Enables the secure forwarding (routing) of telegrams between different lines via a LAN (IP, Ethernet) as a fast backbone.
  • As a secure router, the device enables the coupling of unsecured communication on a KNX TP line with a secure IP backbone
  • Has an extended filter table for main group 0 to 31 and can buffer up to 150 telegrams
  • The device also serves as a secure interface between IP (Ethernet) and KNX and can be used as a programming interface for the ETS
  • As KNX Secure Interface (tunneling) the device prevents unauthorized access to the system
  • The device can be used to access the KNX bus from any point in the LAN
  • The security option can be activated or deactivated in the ETS.
  • The LEDs indicate operating conditions as well as communication errors on the KNX bus

Mounting method :DRA (DIN-rail adapter)
Bus system KNX :Yes
Bus system radio frequent :No
Bus system Powernet :No
Width in number of modular spacings :1
Other bus systems :None
Bus system LON :No
Bus system KNX radio :No
