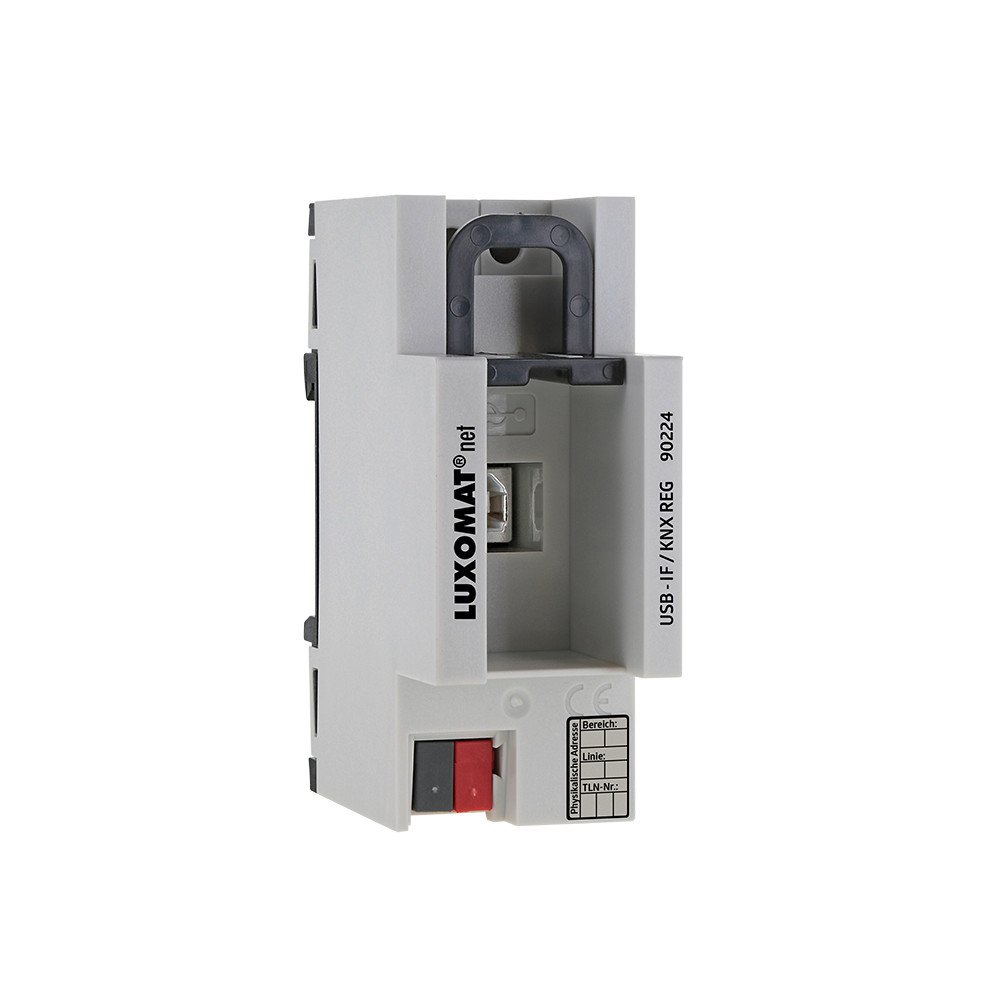

B.E.G. 90224 (USB-IF/KNX REG grey) DIN-rail Mount Device DIN-rail (TH35), Grey IP20 KNX

Name: B.E.G. 90224 (USB-IF/KNX REG grey) DIN-rail Mount Device DIN-rail (TH35), Grey IP20 KNX
Brand: B.E.G.
SKU: 12375
Price: 99999 GBP
Availability: InStock

Part: 90224

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Connection of a PC for addressing, programming and diagnosis of KNX components
Power is supplied completely via the USB interface from the connected PC

Mounting method :	DRA (DIN-rail adapter)
Colour :	Grey
Model :	USB
Surface protection :	Other
Max. data transmission rate :	9600Baud
Material qualifier :	Other
Bus system KNX :	Yes
Bus system radio frequent :	No
Bus system Powernet :	No
Bus connection included :	Yes
Material :	Plastic
Width in number of modular spacings :	2
Other bus systems :	None
Bus system LON :	No
With label area :	Yes
Degree of protection (IP rating) :	IP20
With LED indication :	Yes
Transparent :	No
Surface finish :	Matt
Bus system KNX radio :	No
Radio frequent bidirectional :	No
