B.E.G. 90134
Image is for illustrative purposes only

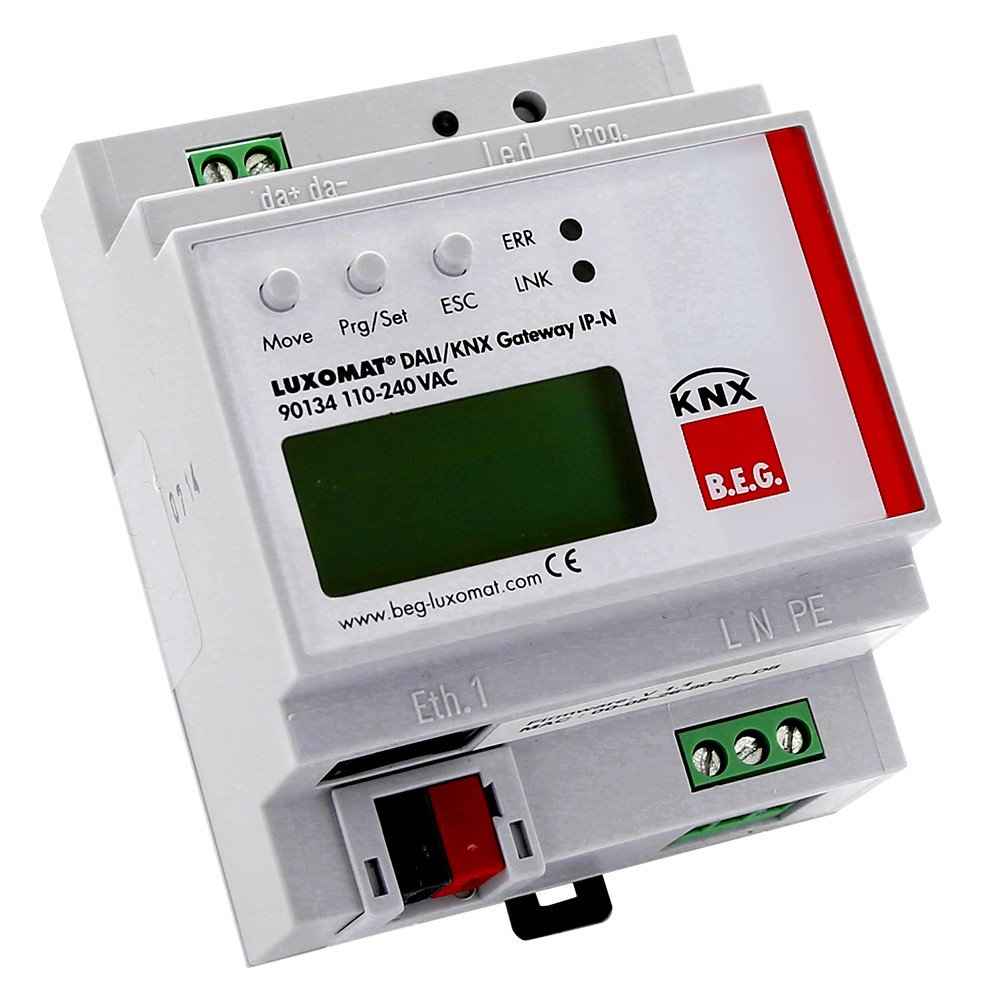

B.E.G. 90134 (DALI/KNX-Gateway IP-N white) Gateway DALI White IP20

Part: 90134
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • The gateway connects the KNX BUS with the DALI BUS (DALI BUS for controlling the illumination)
  • Each gateway is for controlling and dimming up to 64 electronic ballasts in 16 groups
  • RJ45 interface for integration into the IP network
  • Commissioning and assignment of the electronic ballasts (DALI) via operating keys, ETS or integrated web server
  • Various operating modes
  • Burn-in function for optimising the lifetime of the lamps
  • Scenes module for controlling individual electronic ballasts
  • Individual error detection (transmission to KNX or Ethernet)
  • Function for quick and easy replacement of one electronic ballast without ETS or system integrator
  • Test function and evaluation for DALI emergency lights

Mounting method :DRA (DIN-rail adapter)
Model :Light system interface/Dali
Bus system KNX :Yes
Bus system radio frequent :No
Bus system Powernet :No
Width in number of modular spacings :4
Other bus systems :Other
Bus system LON :No
Demounting protection :No
Radio interface :No
Infrared Interface (IR) :No
Protocol :TCP/IP
Provider dependent :No
Updateable :No
Visualization :Yes
Web-Server :Yes
Degree of protection (IP rating) :IP20
With LED indication :Yes
Bus system KNX radio :No
Radio frequent bidirectional :No
