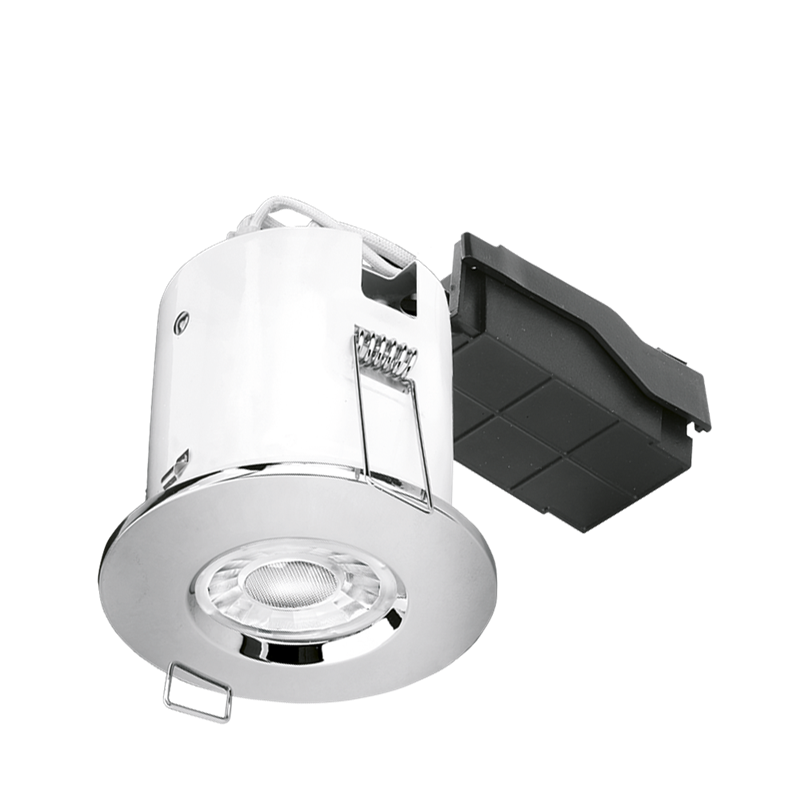

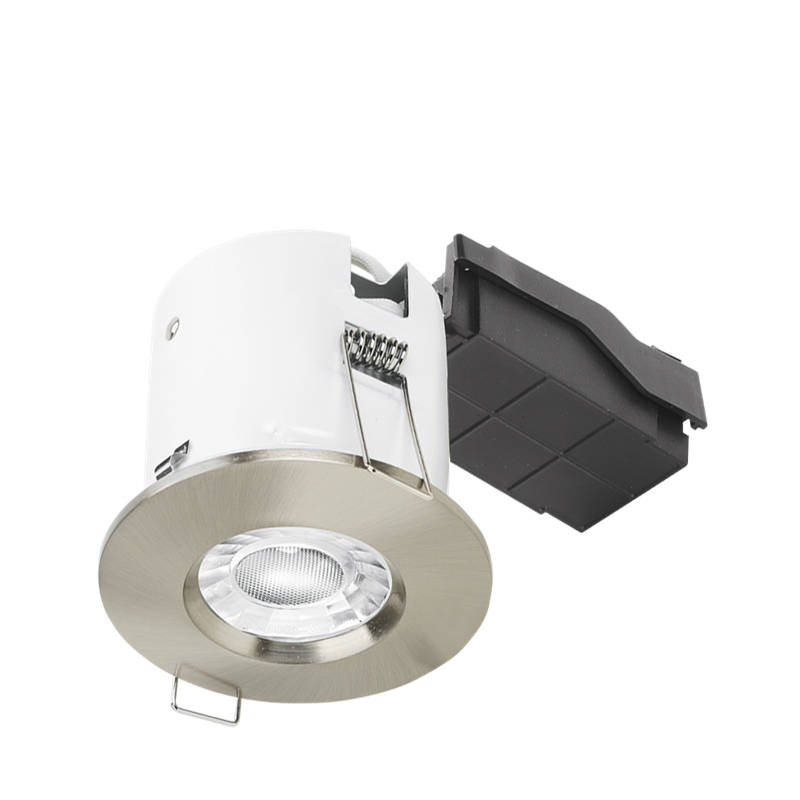

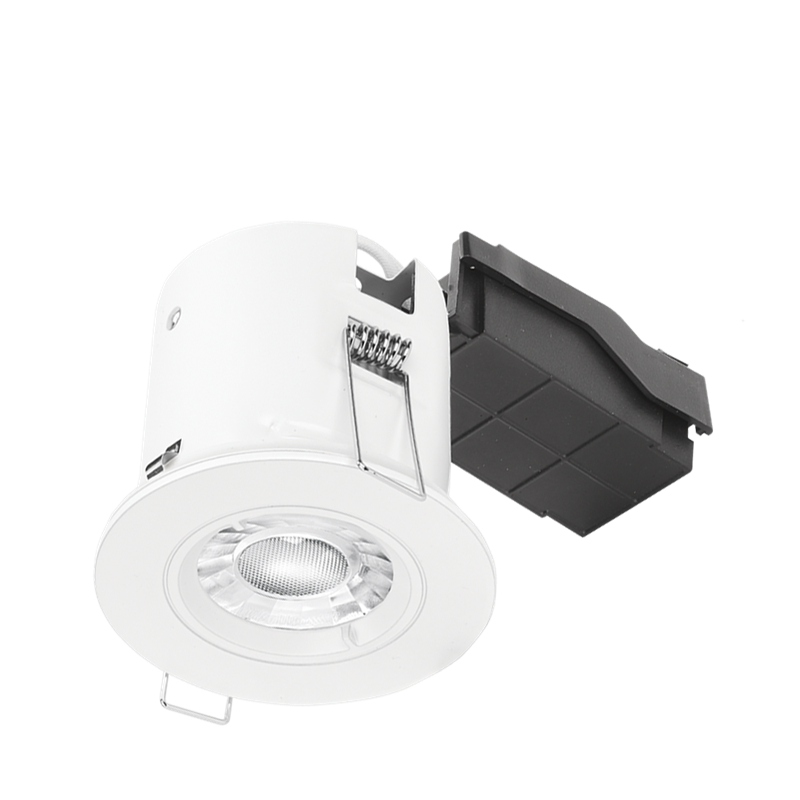

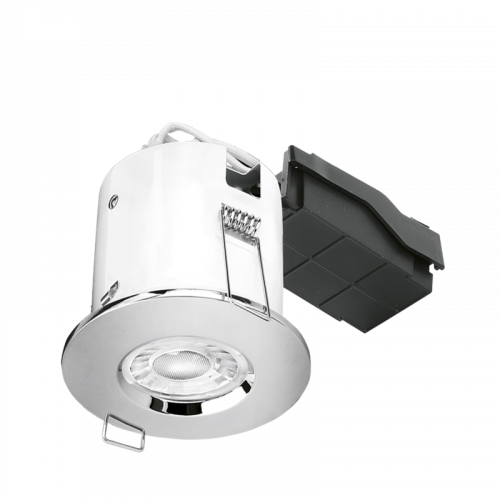

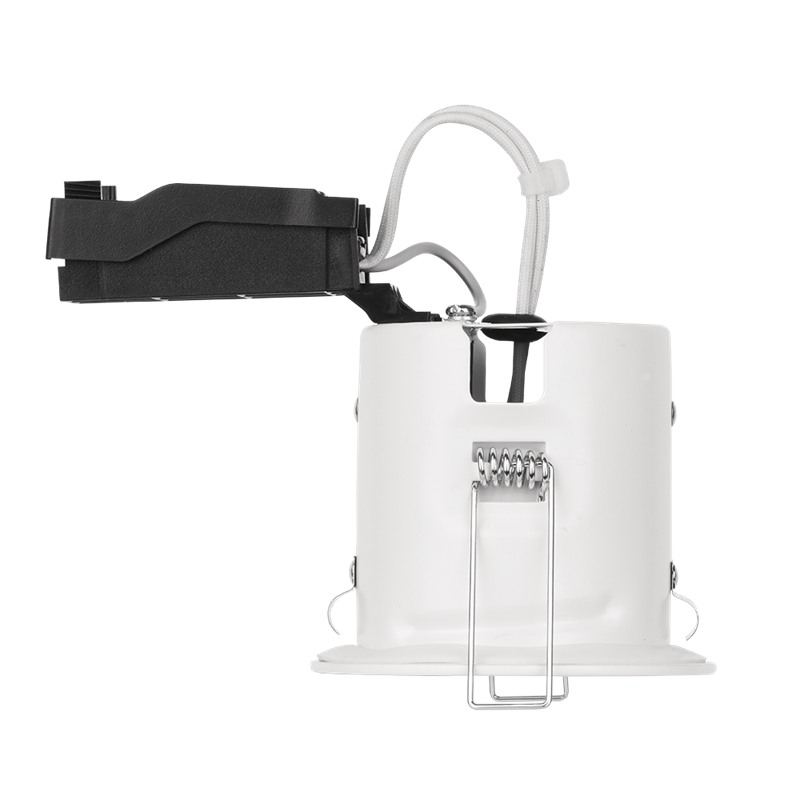

Aurora EN-DLM981X Aurora Fixed/IP EFD™ PRO Fire Rated Downlight

Part: EN-DLM981X
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

The EFD™ PRO is our new range of stylish and professional fire rated GU10 downlights. Perfect for use with our market leading range of ICE™ lamps, the EFD™ PRO range is also fitted with our latest push-fit terminal block for even faster installation. The cast aluminium bezels for fixed, adjustable and IP65 rated options are available in four colour finishes to cover all applications.

  • Fire tested with solid timber, ijoist and metal web joists
  • Tested in 30, 60 and 90 min fire rated ceilings
  • For IP65 rated use EN-DLM981X & EN-BZ93
  • For a fixed version use EN-DLM981X & EN-BZ91
  • Fibre based insulation coverable up to 300mm (LED only)
  • 5 year warranty
  • Push-fit terminal block with loop in/loop out for installation
  • Interchangeable twist & lock bezels available in white, matt white, polished chrome and satin nickel (sold separately)

Protection class :I
Outer diameter :90mm
Reflector :None
Lamp cap/base :Other
Housing colour :White
Voltage type :AC
With movement sensor :No
Control gear :Not required
Wall mounting :No
With light sensor :No
Suitable for suspended mounting :No
Height/depth :107mm
Housing material :Other
Light source type :Other
Light outlet :Direct
Light sharing :Symmetric
Nominal voltage :240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP20
Lamp included :No
Luminaire may be covered with thermally insulating material :Yes
Number of lamps :1
Suitable for recessed mounting :Yes
Control gear included :No
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :No
Beam angle :Wide beam 40-80°
Colour of light :Other
Adjustability :Not adjustable
Suitable for traverse mounting :No
Suitable for pedestal/floor mounting :No
Suitable for light-track mounting :No
Suitable for clamp-mounting :No
IFTTT support available :No
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Colour temperature switchable :No
Lumen setting adjustable :No
Beam angle adjustable :No
Recess diameter :90mm
Suitable for ceiling mounting :No
Recess height/depth :107mm
