Aurora EN-BH18RBLK/40EM
Image is for illustrative purposes only

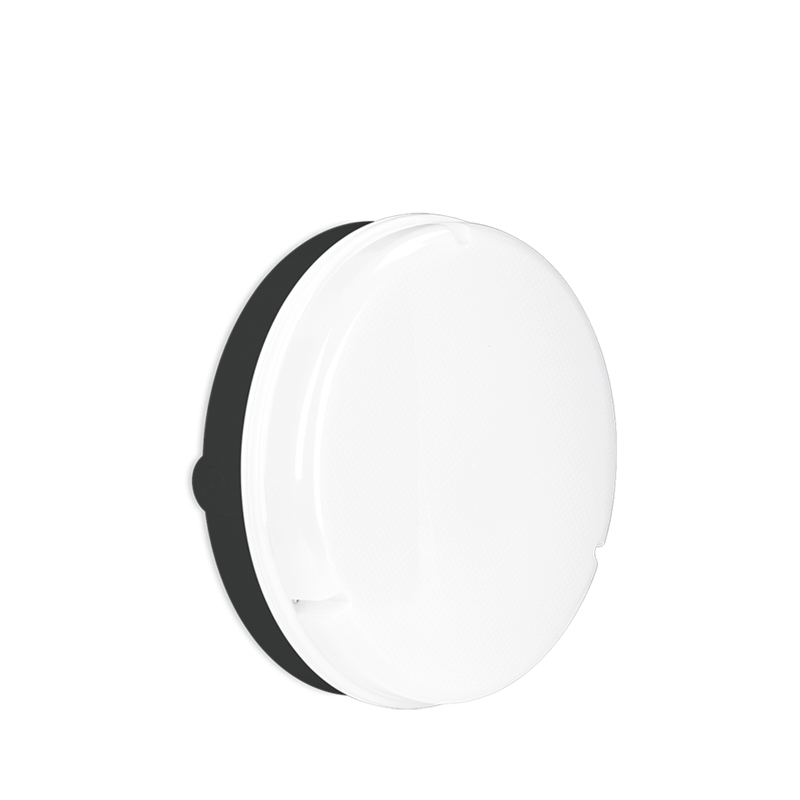

Aurora EN-BH18RBLK/40EM Aurora IP65 Round UtiliteDrum™ 20W 1300lm 4000K Bulkhead - Emergency (Black)

Part: EN-BH18RBLK/40EM
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Drum bulkhead fittings are the trusted workhorse commonly found in many installations. For years this traditional bulkhead has been fitted globally with energy consuming fluorescent lamps. With the UtiliteDrum™ range, you can now upgrade to maintenance free, high efficiency LED alternatives without worrying about changing the look of existing installation. Available in round or square in both black and white with emergency and microwave versions.

  • 1.5kV surge protection
  • Adjustable hold time 5 seconds to 30 minutes
  • Emergency and microwave options available
  • 20mm conduit side entries
  • Wall or ceiling mounting - accessories included
  • Opal diffuser evenly diffuses light and eliminates LED hot spots
  • Tough IK10 rating for maximum impact resistance
  • Life not affected by frequent switching
  • IP65 polycarbonate LED bulkhead
  • 3 year warranty

Protection class :II
Outer diameter :285mm
Lamp cap/base :Other
Housing colour :White
Voltage type :AC
With movement sensor :No
Lamp power :20W
Type of grid :None
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
With light sensor :No
Suitable for suspended mounting :No
Height/depth :86mm
Housing material :Other
Light source type :Other
Suitable for light line configuration :No
Suitable for emergency lighting :Yes
Light outlet :Direct
Light sharing :Symmetric
Impact resistance (IK rating) :IK10
Nominal voltage :240V
Emergency power supply integrated :Yes
Degree of protection (IP rating) :IP65
Lamp included :No
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 :No
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :No
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Colour temperature :4000K
Maximum system power :20W
Rated luminous flux acc. IEC 62722-2-1 :1300Lm
Colour of light :White
With air slots :No
IFTTT support available :No
Luminaire efficacy :65lm/W
Unified Glare Rating (UGR) :25
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Colour temperature switchable :No
Lumen setting adjustable :No
Beam angle adjustable :No
Suitable for ceiling mounting :Yes
Recess height/depth :86mm
Power factor :0.9
