Aurora AU-R6CWSFF Aurora Fixed R6™CWS Fire Rated Upto 620lm 4W/6W 3000K/4000K/5700K Downlight - FastRFix

Part: AU-R6CWSFF
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

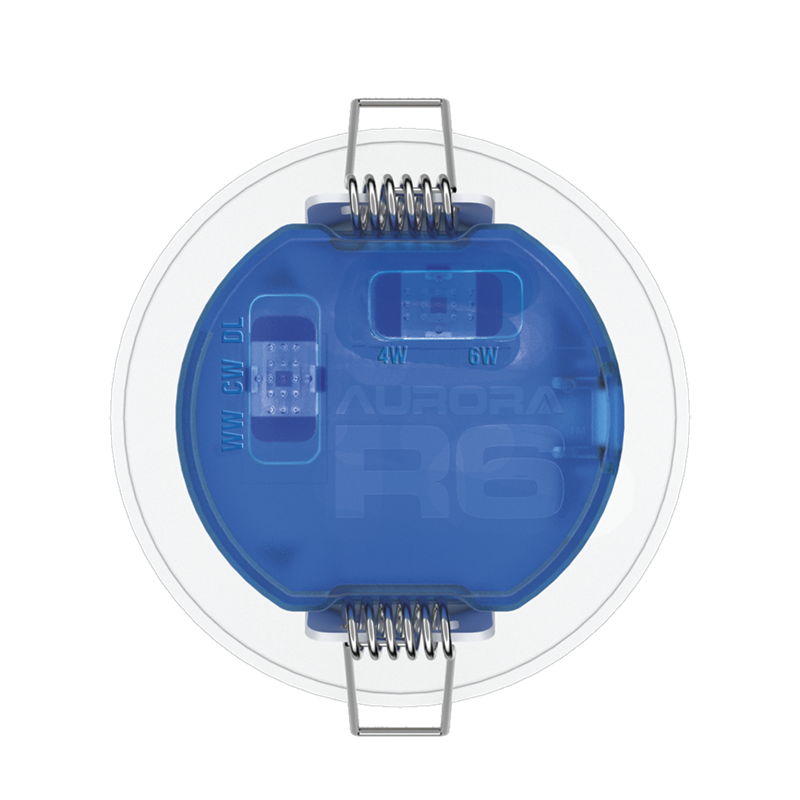

With the installer and wholesaler in mind, Aurora introduces the R6™CWS. The R6™CWS is Aurora's very first colour and wattage switchable fire rated downlight, supplied with a FastRFix and at a height of 50mm, it is ideal for shallow ceiling voids. Colour switch is located on the back of the fitting and the wattage switch can be found on the remote driver. Product comes complete with a polycarbonate white bezel (polished chrome, satin nickel and matt black bezels sold separately).

  • 5 Year Warranty
  • L70 40,000hrs
  • IP65 Polycarbonate Polished Chrome, Satin Nickel and Matt Black bezel options
  • Emergency option
  • Triac dimmable as standard
  • 60° beam angle
  • Tested in 30, 60 and 90 minute solid timber joist, plus 30 minute i-joists and metal web joist
  • Fire, acoustic and air leakage rated
  • Patented fire rated downlight without intumescent
  • Insulation coverable

Protection class :II
Outer diameter :88mm
Reflector :None
Lamp cap/base :Other
Housing colour :Aluminium
Voltage type :AC
With movement sensor :No
Control gear :Not required
Colour rendering index (CRI/Ra) :80-89
Wall mounting :No
With light sensor :No
Suitable for suspended mounting :No
Height/depth :50mm
Housing material :Aluminium
Light source type :Other
Light outlet :Direct
Light sharing :Symmetric
Nominal voltage :240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP65
Luminaire may be covered with thermally insulating material :Yes
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :No
Colour temperature :3000 to 5700K
Rated luminous flux acc. IEC 62722-2-1 :620Lm
Colour of light :White
Adjustability :Not adjustable
Suitable for traverse mounting :No
Suitable for pedestal/floor mounting :No
Suitable for light-track mounting :No
Suitable for clamp-mounting :No
IFTTT support available :No
Luminous flux :620Lm
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Colour temperature switchable :Discrete positions
Lumen setting adjustable :No
Beam angle adjustable :No
Recess diameter :88mm
Suitable for ceiling mounting :No
Recess height/depth :50mm
Power factor :0.85
