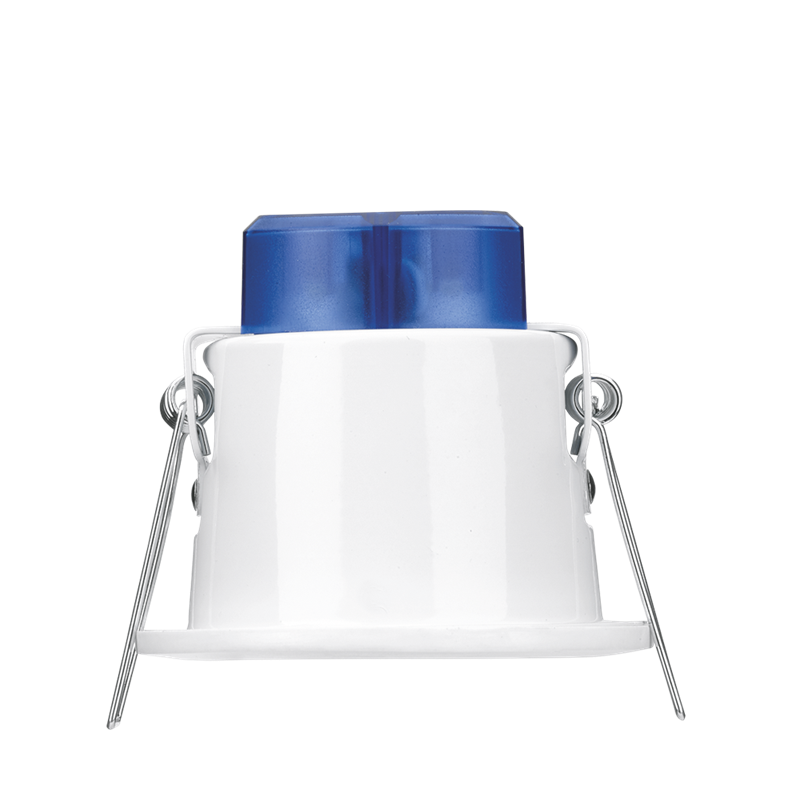

Aurora AU-R6CWSBF Aurora Baffled R6™CWS Fire Rated Upto 560lm 4W/6W/8W 3000K/4000K/5700K - Remote Driver

Part: AU-R6CWSBF
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

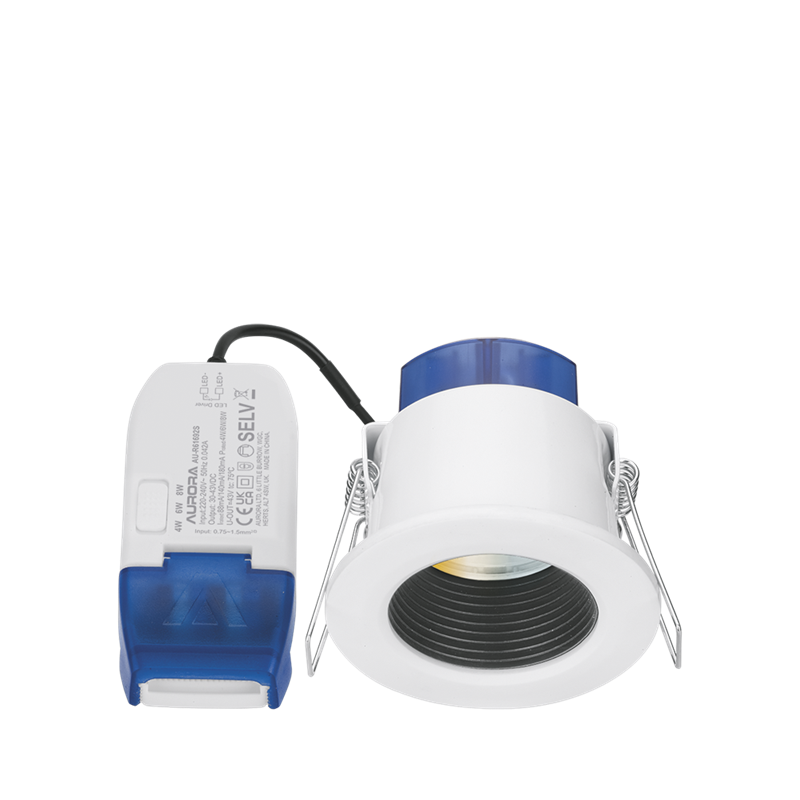

With the installer and wholesaler in mind, Aurora introduces the R6™CWS. This R6™CWS is Aurora's baffled colour and wattage switchable fire rated downlight, supplied with an AMP connector applied to a remote detachable driver with a loop in/loop out terminal block. Colour switch is located on the back of the fitting and the wattage switch can be found on the remote driver. This baffled option is fantastic to help reduce glare. Product comes complete with a polycarbonate white bezel (polished chrome, satin nickel and matt black bezels sold separately).

  • 5 Year Warranty
  • IP65 Polycarbonate Polished Chrome, Satin Nickel and Matt Black bezel options
  • Triac dimmable as standard
  • L70 40,000hrs
  • 55° beam angle
  • Tested in 30, 60 and 90 minute solid timber joist, plus 30 minute i-joists and metal web joist
  • Fire, acoustic and air leakage rated
  • Select colour temperature and wattage prior to installation
  • Patented fire rated downlight without intumescent
  • Insulation coverable

Protection class :II
Outer diameter :88mm
Reflector :None
Lamp cap/base :Other
Housing colour :Other
With movement sensor :No
Lamp power :8W
Control gear :Not required
Colour rendering index (CRI/Ra) :80-89
Wall mounting :No
With light sensor :No
Suitable for suspended mounting :No
Height/depth :75mm
Housing material :Aluminium
Light source type :Other
Light outlet :Direct
Nominal voltage :240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP65
Luminaire may be covered with thermally insulating material :Yes
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :No
Colour temperature :3000 to 5700K
Maximum system power :8W
Rated luminous flux acc. IEC 62722-2-1 :560Lm
Colour of light :White
Adjustability :Not adjustable
Suitable for traverse mounting :No
Suitable for pedestal/floor mounting :No
Suitable for light-track mounting :No
Suitable for clamp-mounting :No
IFTTT support available :No
Luminous flux :560Lm
Luminaire efficacy :70lm/W
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Colour temperature switchable :Discrete positions
Lumen setting adjustable :Discrete positions
Beam angle adjustable :No
Recess diameter :88mm
Suitable for ceiling mounting :No
Recess height/depth :75mm
Power factor :0.85
