Aurora AU-R6CS Aurora Fixed R6™CS Fire Rated 6W Upto 640lm 3000K/4000K/5700K Downlight - Remote Driver

Part: AU-R6CS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

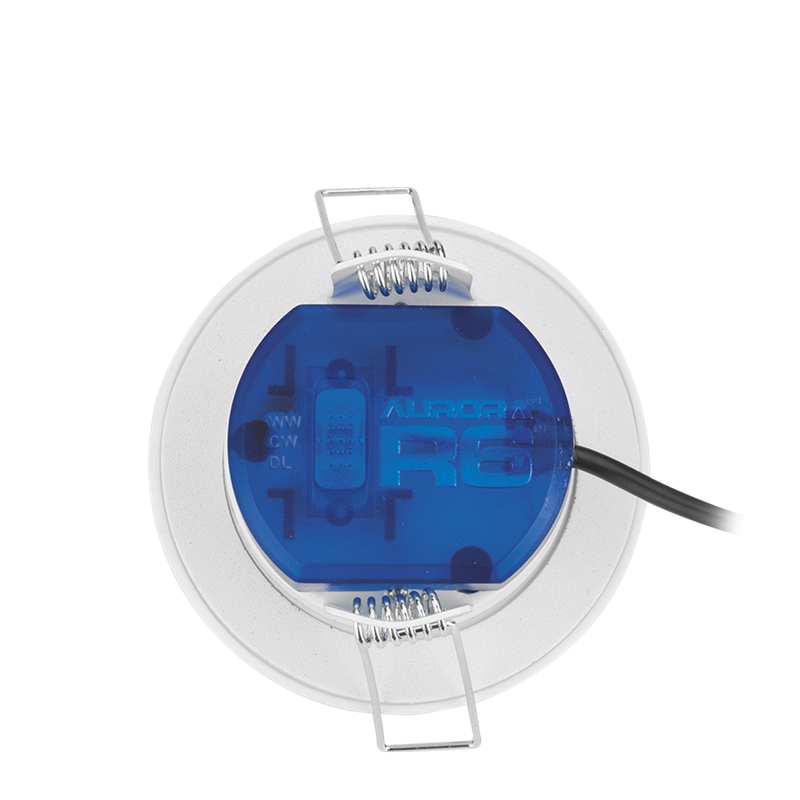

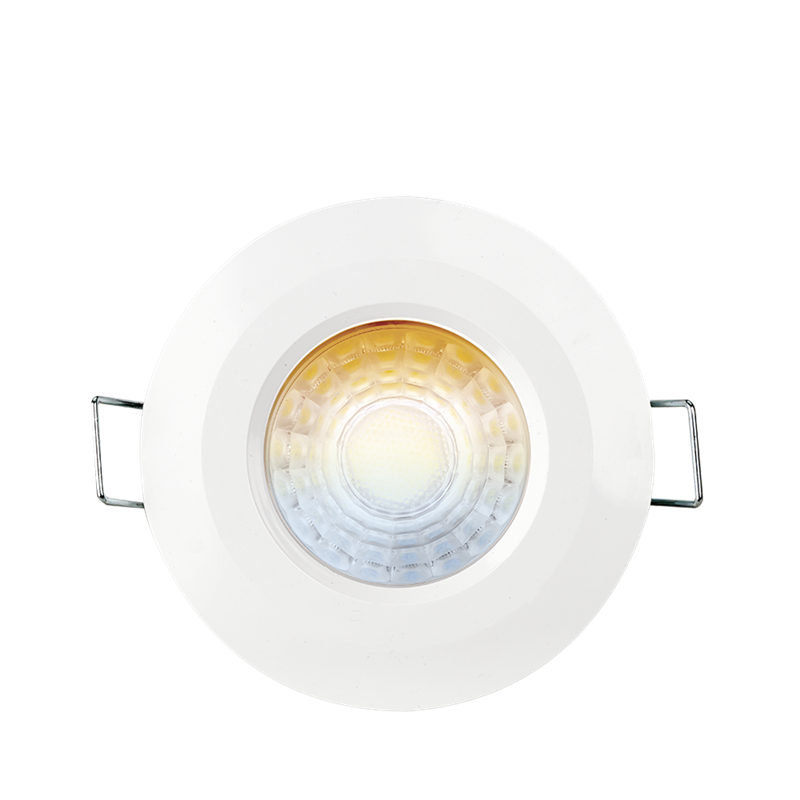

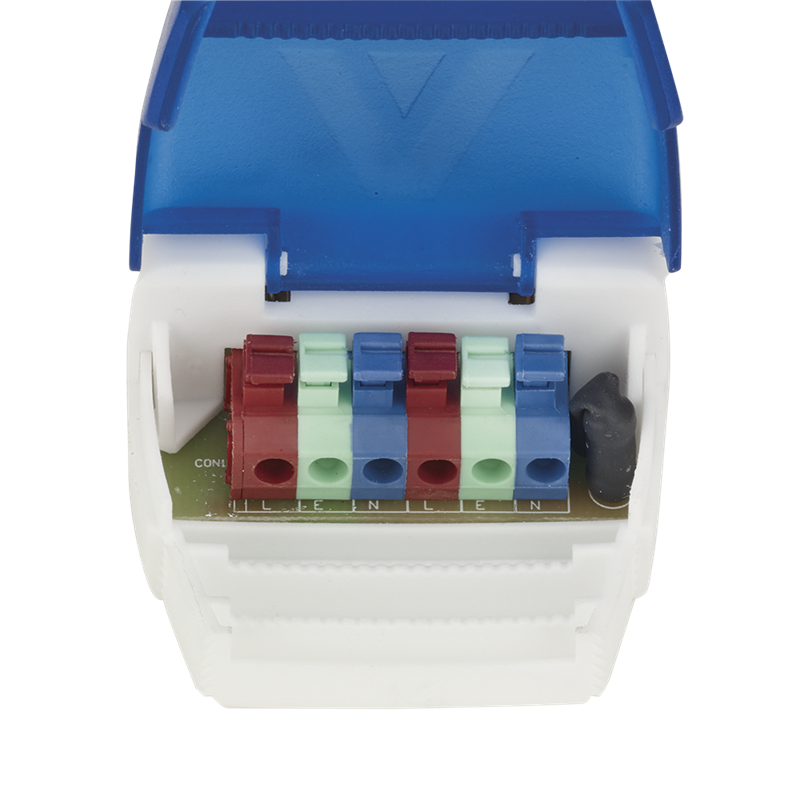

Within the new RSeries Aurora have introduced a new colour switchable fire rated downlight, the R6™CS. The downlight comes with a an AMP connector applied to a remote detachable driver with a loop in/loop out terminal block and at a height of 50mm, it is ideal for shallow ceiling voids. The colour switch can be located on the back of the fitting. Out of the box, the product comes complete with a polycarbonate white bezel (polished chrome, satin nickel and matt black bezels sold separately).

  • 5 Year Warranty
  • IP65 Polycarbonate Polished Chrome, Satin Nickel and Matt Black bezel options
  • Triac dimmable as standard
  • L70 40,000hrs
  • 60° beam angle
  • Tested in 30, 60 and 90 minute solid timber joist, plus 30 minute i-joists and metal web joist
  • Fire, acoustic and air leakage rated
  • Patented fire rated downlight without intumescent
  • Select colour temperature prior to installation
  • Insulation coverable

Protection class :II
Outer diameter :88mm
Reflector :None
Lamp cap/base :Other
Housing colour :White
With movement sensor :Yes
Lamp power :6W
Control gear :Not required
Colour rendering index (CRI/Ra) :80-89
Wall mounting :No
With light sensor :No
Suitable for suspended mounting :No
Height/depth :50mm
Housing material :Aluminium
Light source type :Other
Light outlet :Direct
Nominal voltage :240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP65
Lamp included :No
Luminaire may be covered with thermally insulating material :Yes
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :No
Colour temperature :3000 to 5700K
Maximum system power :6W
Rated luminous flux acc. IEC 62722-2-1 :640Lm
Colour of light :White
Adjustability :Not adjustable
Suitable for traverse mounting :No
Suitable for pedestal/floor mounting :No
Suitable for light-track mounting :No
Suitable for clamp-mounting :No
IFTTT support available :No
Luminous flux :640Lm
Luminaire efficacy :106.67lm/W
Unified Glare Rating (UGR) :26
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Colour temperature switchable :Discrete positions
Lumen setting adjustable :Discrete positions
Beam angle adjustable :No
Recess diameter :88mm
Suitable for ceiling mounting :No
Recess height/depth :50mm
Power factor :0.85
Protection class :II
Outer diameter :88mm
Reflector :None
Lamp cap/base :Other
Housing colour :Aluminium
With movement sensor :No
Lamp power :6W
Control gear :Not required
Colour rendering index (CRI/Ra) :80-89
Wall mounting :No
With light sensor :No
Suitable for suspended mounting :No
Height/depth :50mm
Housing material :Aluminium
Light source type :Other
Nominal voltage :240V
Emergency power supply integrated :No
Degree of protection (IP rating) :IP65
Luminaire may be covered with thermally insulating material :Yes
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :No
Colour temperature :3000 to 5700K
Maximum system power :6W
Rated luminous flux acc. IEC 62722-2-1 :620Lm
Colour of light :White
Adjustability :Not adjustable
Suitable for traverse mounting :No
Suitable for pedestal/floor mounting :No
Suitable for light-track mounting :No
Suitable for clamp-mounting :No
IFTTT support available :No
Luminous flux :620Lm
Luminaire efficacy :103.33lm/W
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Colour temperature switchable :Discrete positions
Lumen setting adjustable :No
Beam angle adjustable :No
Recess diameter :88mm
Suitable for ceiling mounting :No
Recess height/depth :50mm
Power factor :0.85
