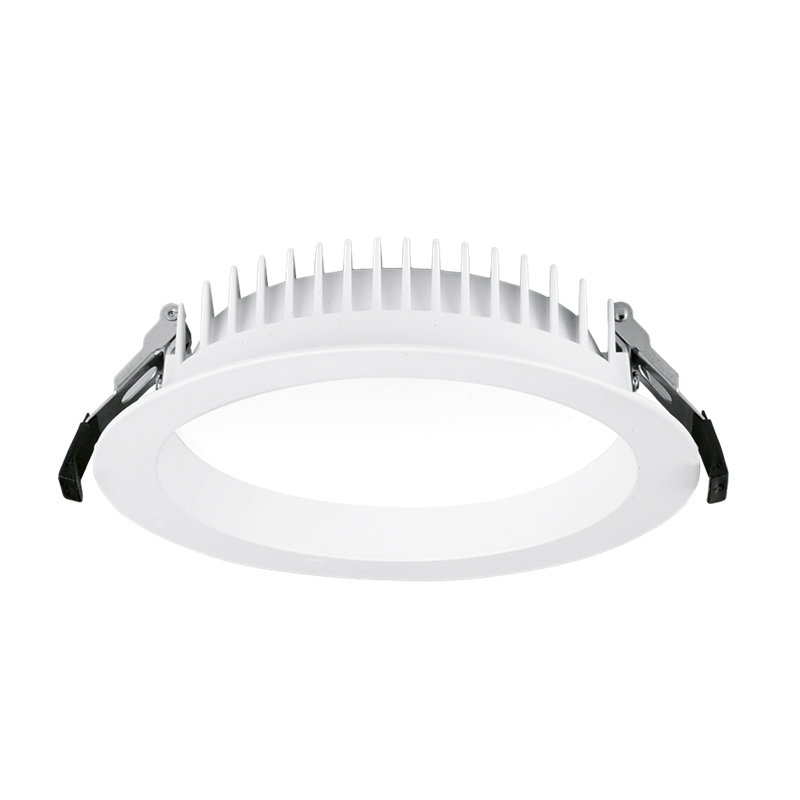

A perfect solution for new commercial applications or upgrading from compact fluorescent fittings in existing applications, the ELumi™ downlight is equipped with an opal diffuser to evenly distribute light.
Protection class : | II |
Outer diameter : | 190mm |
Reflector : | None |
Lamp cap/base : | Other |
Housing colour : | White |
Voltage type : | AC |
With movement sensor : | No |
Lamp power : | 18W |
Control gear : | LED driver constant current |
Colour rendering index (CRI/Ra) : | 80-89 |
Wall mounting : | No |
With light sensor : | No |
Suitable for suspended mounting : | No |
Height/depth : | 53mm |
Housing material : | Other |
Light source type : | Other |
Light outlet : | Direct |
Impact resistance (IK rating) : | IK02 |
Nominal voltage : | 240V |
Emergency power supply integrated : | No |
Degree of protection (IP rating) : | IP54 |
Suitable for recessed mounting : | Yes |
Control gear included : | Yes |
Fit for workplace acc. EN 12464-1 : | No |
Suitable for surface mounting : | No |
Colour temperature : | 4000K |
Maximum system power : | 18W |
Rated luminous flux acc. IEC 62722-2-1 : | 2040Lm |
Colour of light : | White |
Adjustability : | Not adjustable |
Suitable for traverse mounting : | No |
Suitable for pedestal/floor mounting : | No |
Suitable for light-track mounting : | No |
Suitable for clamp-mounting : | No |
IFTTT support available : | No |
Luminous flux : | 2040Lm |
Luminaire efficacy : | 113.33lm/W |
Compatible with Apple HomeKit : | No |
Compatible with Google Assistant : | No |
Compatible with Amazon Alexa : | No |
Max. number of luminaires per miniature circuit breaker C16 : | 76 |
Max. number of luminaires per miniature circuit breaker B16 : | 76 |
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) : | 95% |
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) : | 92% |
Flickering value Pst LM : | 1 |
Stroboscope effect value SVM : | 0.4 |
Colour temperature switchable : | No |
Lumen setting adjustable : | No |
Beam angle adjustable : | No |
Recess diameter : | 190mm |
Suitable for ceiling mounting : | No |
Recess height/depth : | 53mm |
Power factor : | 0.9 |
