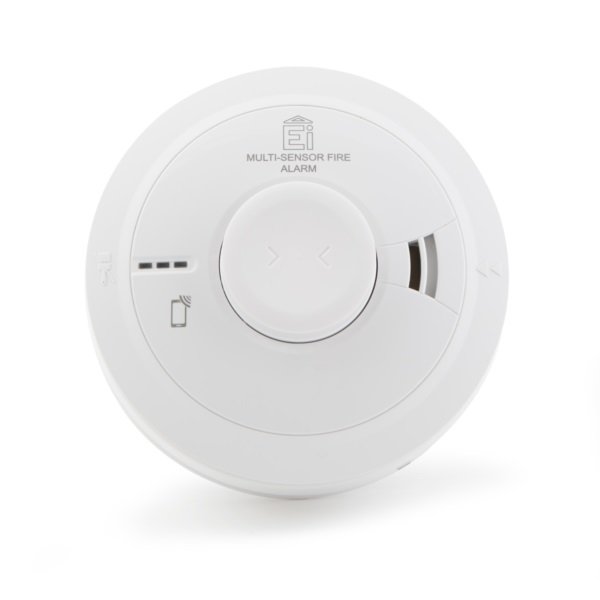

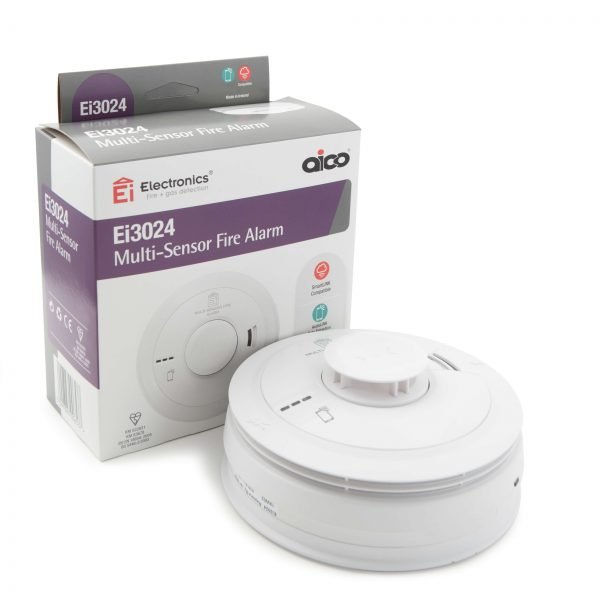

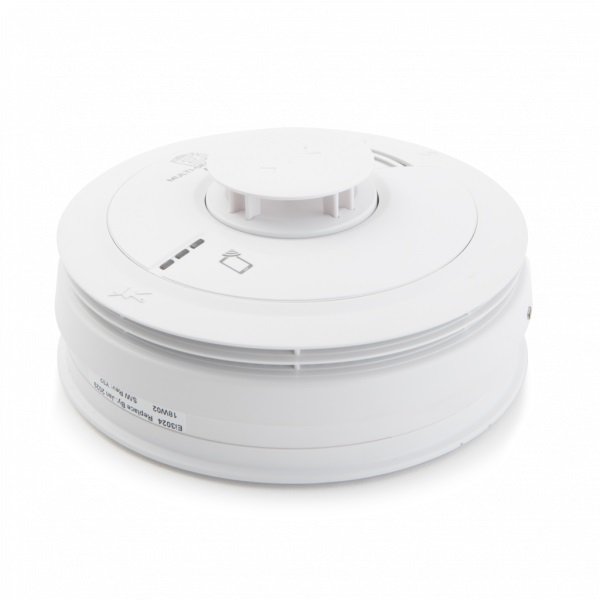

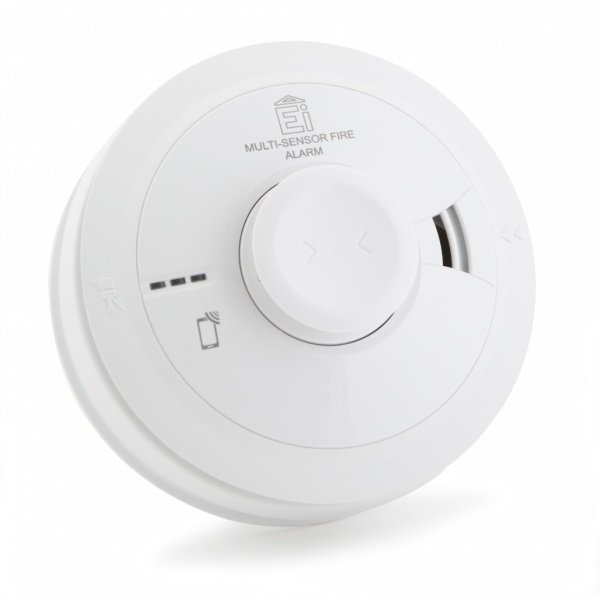

Aico Ei3024 Multi-Sensor Fire Alarm

The Ei3024 Multi Sensor Fire Alarm is built on the same high quality, reliable and proven technology that all Aico Alarms are renowned for, but contains the latest high-tech enhancements making it the most effective domestic fire alarm on the market.

• Contains both an Optical and Heat sensor for a total fire response
• Mains powered with 10-year rechargeable lithium cell back-up
• Add an Ei3000MRF module for wireless interconnection and data extraction
• Compatible with other Aico mains powered units
• AudioLINK+ data extraction technology
• Dust compensation – unique self monitoring mechanism
• easi-fit base
• 10-year life

*When purchased as part of the eco-fit range, this product does not include easi-fit bases, screw packs or dust covers.

Technical Specification:

• Sensor Types: Optical & Thermistor
• Supply Voltage: 230V AC, 50Hz
• Power Consumption: 0.25W (standby)
• Battery Back-up: Rechargeable lithium cells
• Sound Level: 85dB(A) at 3m
• Button Test: Checks sensors, electronics and sounder
• Silence Function: Silences alarm for 10 minutes
• Silence Function: Silences fault beeps for 12 hours
• AudioLINK+: Enabled
• SmartLINK: Compatible via the Ei3000MRF Module
• Indicator LEDs: Green – power. Red – alarm/ silence mode/ memory. Yellow – fault event
• Memory: Records last alarm event
• Fixing: easi-fit base (supplied)
• Operating Temperature: -10°C to 40°C
• Humidity Range: 15% to 95% relative humidity
• Plastic Material: UL 94 V0 flame retardant
• Dimensions – Product: 150mm x 66mm
• Dimensions – Boxed: 180mm x 155mm x 70mm
• Weight: 346g (product only), 412g (boxed)
• Guarantee: 5 years

• Ei3024 Instructions
• Ei3024 Data Sheet
