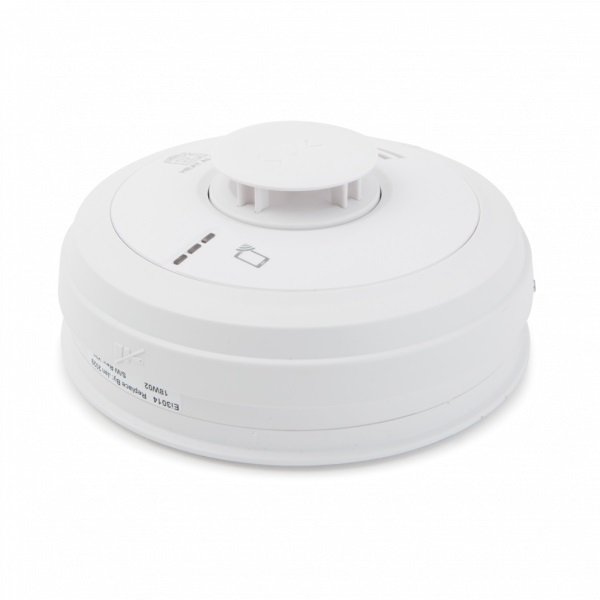

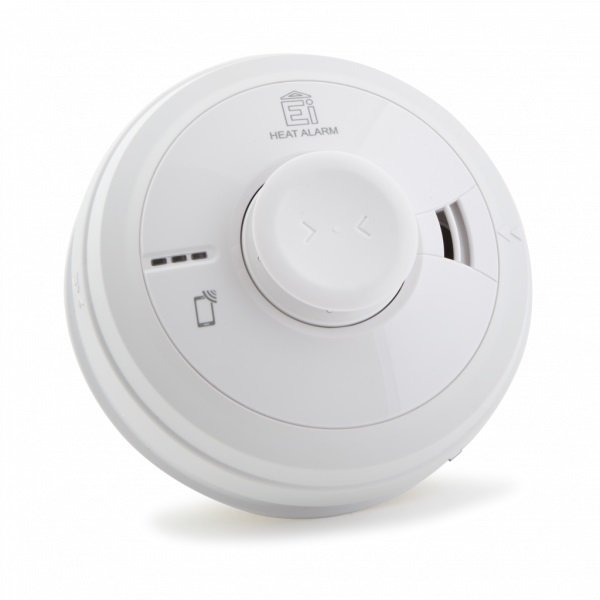

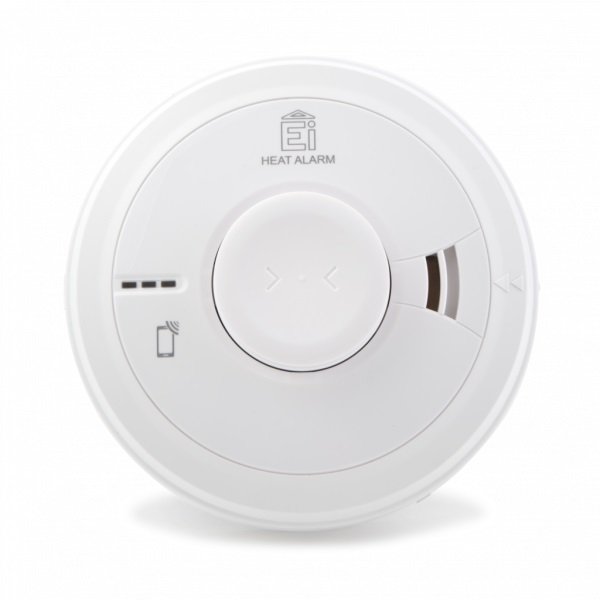

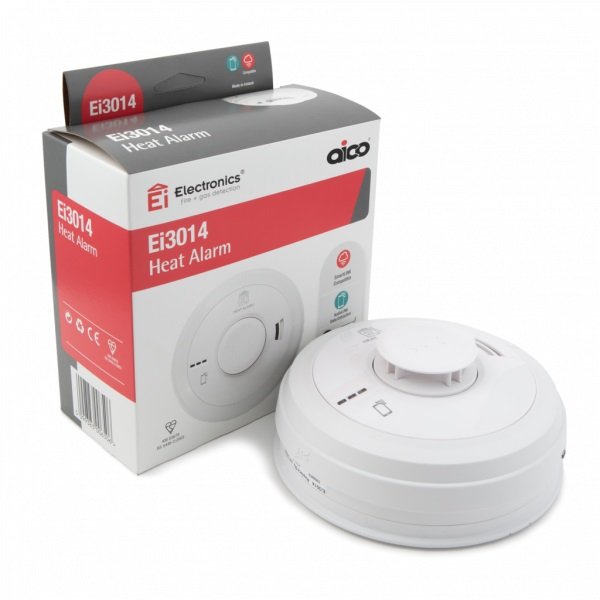

Aico Ei3014 Heat Alarm

Suitable for detecting heat in both the kitchen or garage, the Ei3014 Heat Alarm contains our tried and tested high-performance thermistor heat sensor, providing protection from fire in the household. The thermistor has been designed using a smaller thermal mass, providing a faster alarm response when the trigger temperature of 58°C is reached. Best for detecting heat build-up from large flaming fires, it can differentiate from smoke or steam to prevent false alarms from occurring too often.

• Contains a fast response thermistor heat sensor
• Mains powered with 10-year rechargeable lithium cell back-up
• Add and Ei3000MRF SmartLINK module for wireless interconnection and data extraction
• Compatible with other Aico mains powered devices
• AudioLINK data extraction technology
• easi-fit base
• 10-year life

*When purchased as part of the eco-fit range, this product does not include easi-fit bases, screw packs or dust covers.

Technical Specification:

• Sensor Types: Heat – Activates at 58°C
• Supply Voltage: 230V AC, 50Hz
• Power Consumption: 0.25W (standby)
• Battery Back-up: Rechargeable lithium cells
• AudioLINK+: Enabled
• SmartLINK: Compatible via the Ei3000MRF Module
• Indicator LEDs: Green – power. Red – alarm/ silence mode/ memory. Yellow – fault event
• Memory: Records last alarm event
• Fixing: easi-fit base (supplied)
• Operating Temperature: – 10°C to 40°C
• Humidity Range: 15% to 95% RH (non-condensing)
• Plastic Material: HIP UL 94 V0 Flame Retardant
• Dimensions – Product: 155mm x 155mm
• Weight: 308g (product only), 383g (boxed)
• Guarantee: 5 years
