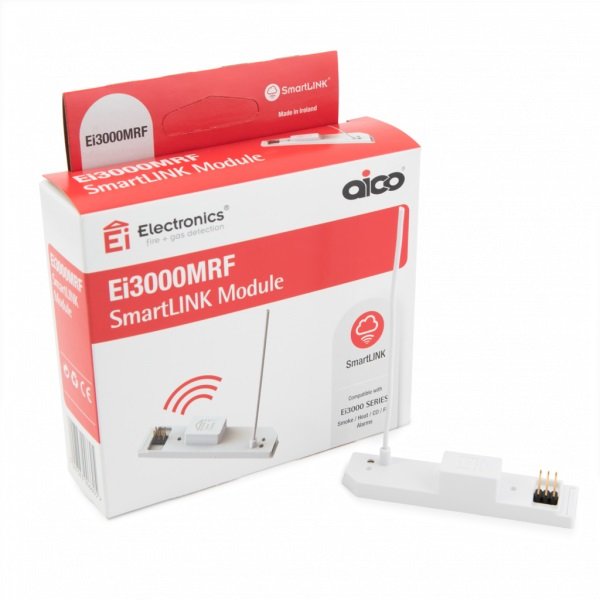

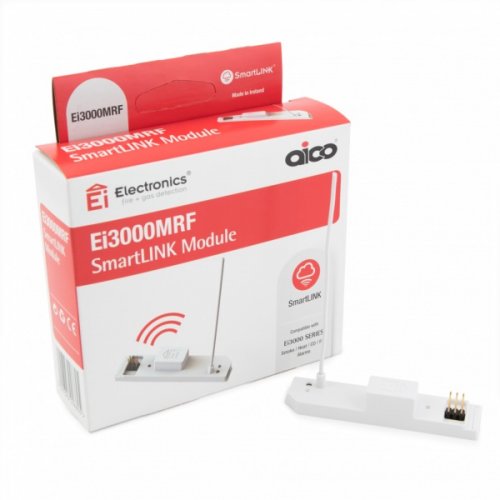

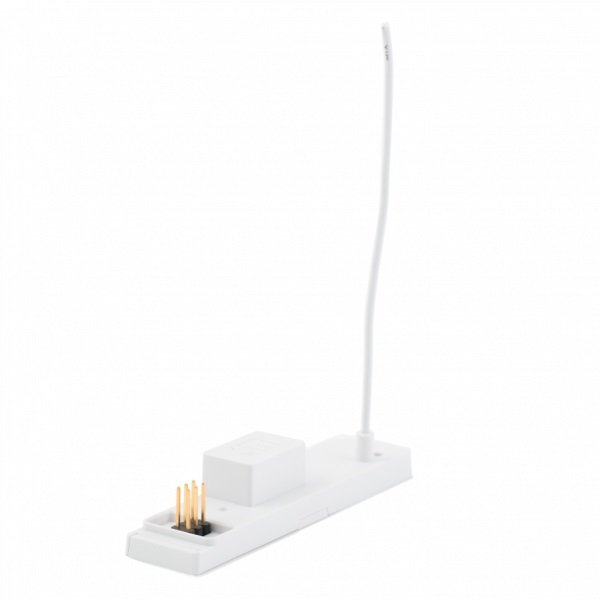

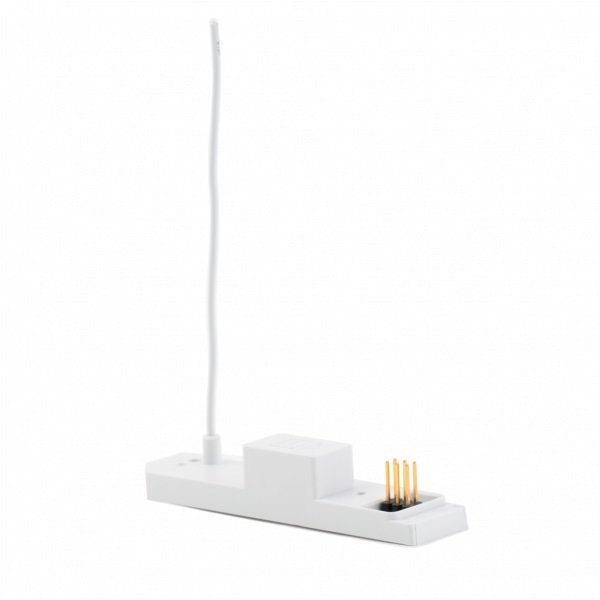

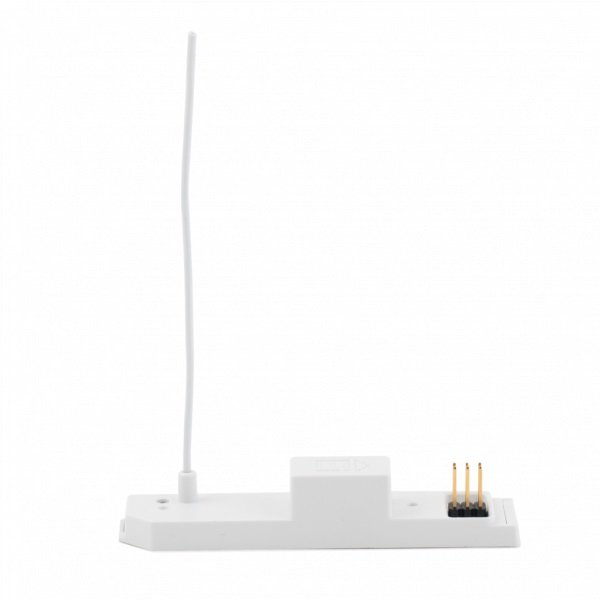

Aico Ei3000MRF SmartLINK Module

Part of the next generation of Radio Frequency Wireless Interconnection.

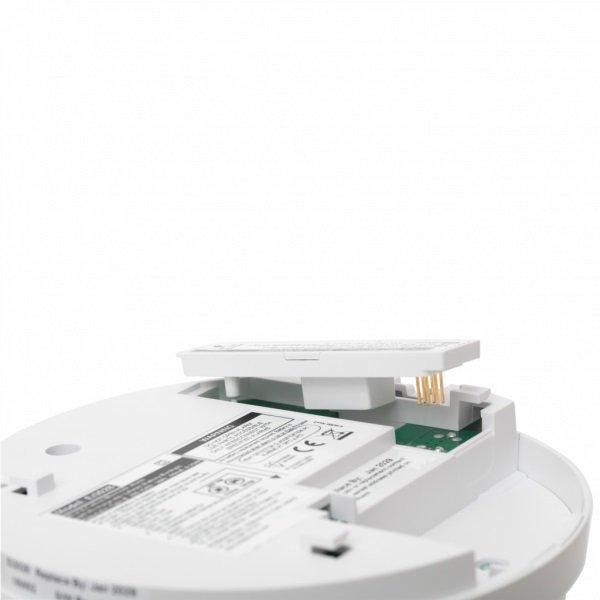

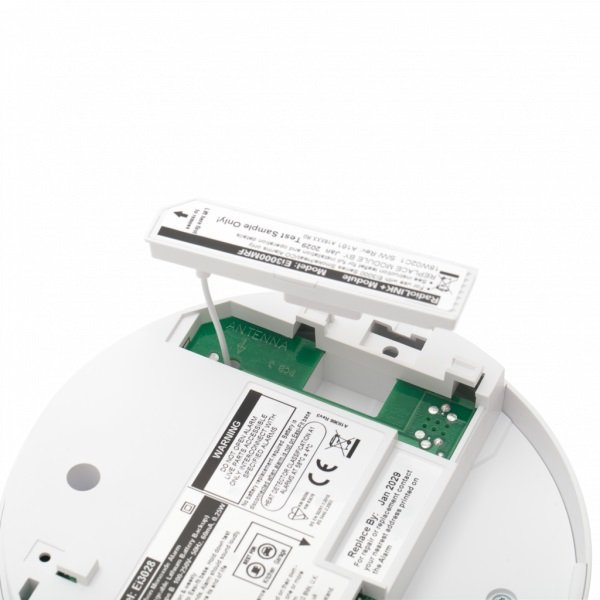

The Ei3000MRF Module allows for wireless interconnection and data extraction. Simply plug in to any 3000 Series alarm.

• Powered from alarm head
• Add this to an Ei3000 series alarm to allow for SmartLINK interconnection and data extraction
• Compatible with other Aico wireless interconnection products
• Interconnect up to 12 alarms and devices wirelessly
• Real-time configurable notifications
• Full visibility of your connected SmartLINK systems
• Forecast alarm replacements and maintenance
• Remote Alarm Learn entry
• Transmits, receives and repeats RF specific data
• RF mesh architecture
• Unique House Coding feature
• RF Data Download

Technical Specification:

• Supply Voltage: Powered from Alarm
• RF Frequency: 868MHz band (1% duty cycle)
• RF Power: +10dBm
• RF Protocol: Proprietary RF Protocol using multi-path, multi-repeater mesh architecture
• RF Range: >100 metres in free air, 30 metres in standard property
• System Size: Up to 12 RF devices
• Indicator LED’s: 3 colour LED: Blue, Green and Red
• Data Monitoring: Via Ei1000G Gateway
• Operating Temperature: -10°C to 40°C
• Humidity Range: 15% to 95% relative humidity
• Plastic Material: UL 94 V0 flame retardant
• Dimensions – Product: 80mm x 18mm x 16mm
• Dimensions – Boxed: 120mm x 110mm x 35mm
• Weight: 10g (product only), 62g (boxed)
• Guarantee: 5 years
